FERRI ZMT - Page 51

51
Rev. 5.1
ZMT-ZMTE
TRANSPORT AND INSTALLATION
4.15
04-Rimozione imballo (ZM-ZMTE)
4
3
2
1
C
D

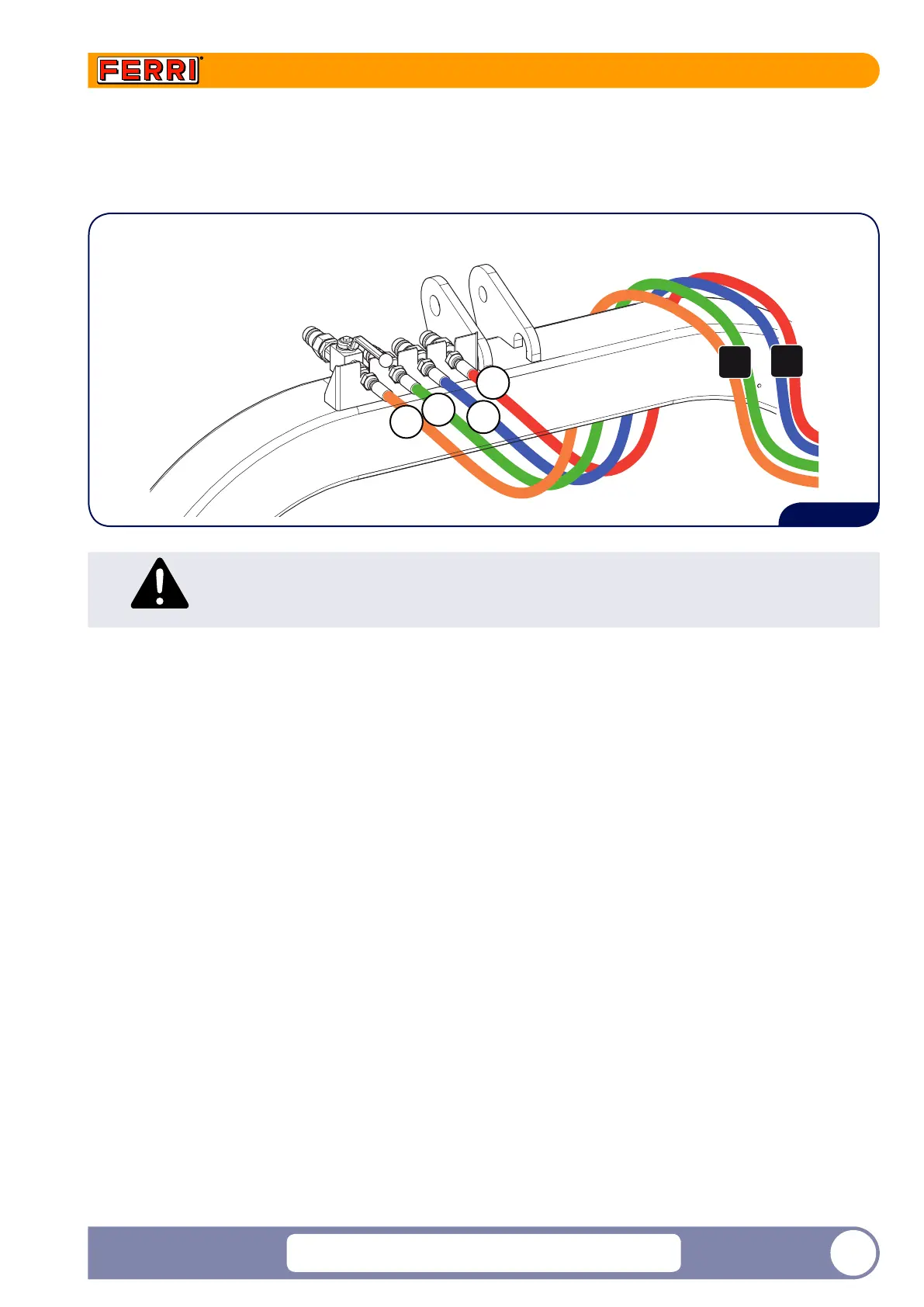

17) The hoses of the ail head rotation hydraulic ram (those of greatest length) must be passed through and xed
to point “C” on the attachment wall and xed to the appropriate support in position 1 and 2. The hoses of the
parallel arm movement hydraulic rams must be xed to point “D” and placed in position 3 and 4.
FERRI Srl declines all responsibility for damage caused by the incorrect assembly of
the parts.
CAUTION
