FERRI ZMT - Page 50

50
ZMT-ZMTE
Rev. 5.1
TRANSPORT AND INSTALLATION
4.13
4.14
04-Rimozione imballo (ZM-ZMTE)

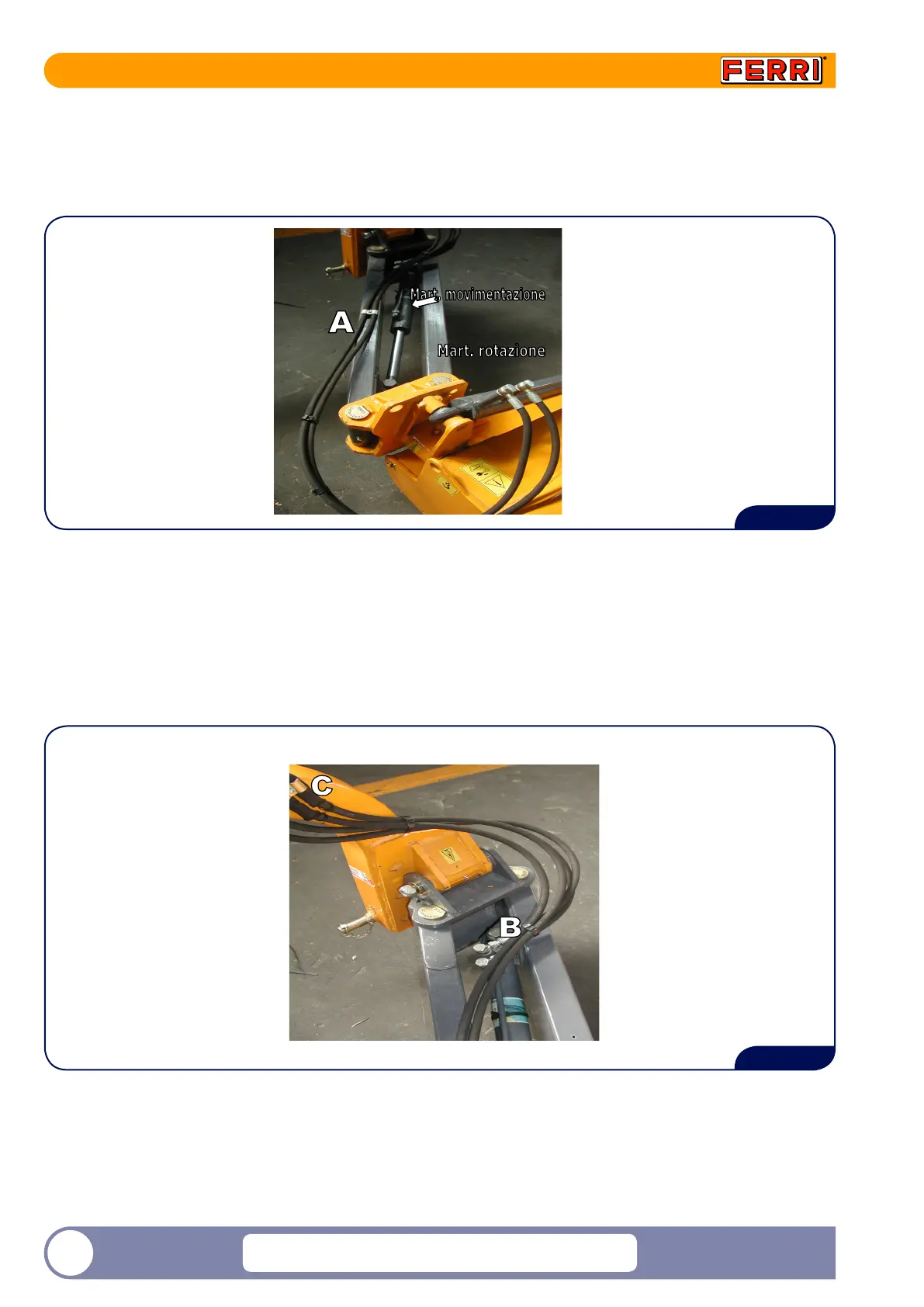

14) Position the hydraulic hoses correctly having them pass on the arm (A) and xing them with the appropriate
clip, using as reference the marks previously done on the hoses.
15) Activate the rotation hydraulic ram hoses as in the gure and x them to point “A” of the arm.
16) The movement hydraulic ram hoses however go directly to the attachment wall and are xed in position B.
