Send configuration data
The configuration data are transferred from the
DP-master to the valve terminal with the function
Chk_Cfg .
PLEASE NOTE
A valve terminal can be configured as follows:
- an identifier byte for every nx8 inputs
and an identifier byte for every nx8 outputs
or
- an identifier byte each for the sum of the
inputs and the sum of the outputs.
76543210
Bit
Bit
Length of data
00 = 1 byte/word
*
15 = 16 bytes/words
Input/output
00 = Specific identifier formats *)
01 = Input
10 = Output
11 = Input/output
Length
0 = Byte
1= Word
Consistence
0 = Byte or word
1 = Total length
*) not supported

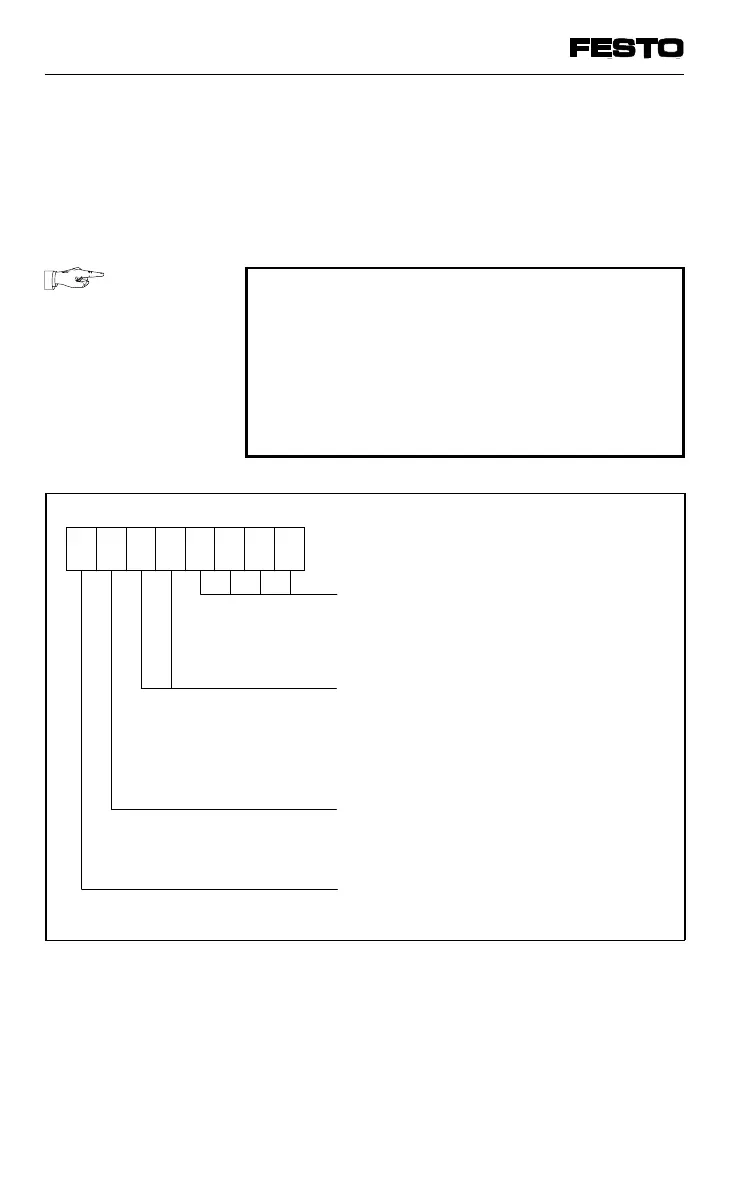

Fig. 4/17: Composition of identifier byte
