Type 05: Description of components
Valve terminal type 05 consists of individual
modules. Each module is assigned with different
functions, connections, display and operating
elements. These are shown in the diagram
below.
No. Meaning
1
Node
2
Electronic modules (input/output modules), fitted with
• digital inputs (modules with 4 or 8 inputs)
• digital outputs (modules with 4 outputs)
3
End plate left with opening for additional earth connection
4
Adapter plate for pneumatic modules (sub-bases) as per ISO5599/I
sizes 1 and 2
5
Pneumatic modules (sub-bases) to be fitted with:
• Pneumatic valves as per ISO 5599/I
- single pneumatic valves
- double pneumatic valves
- pneumatic mid-position valves (blocked, pressurized, exhausted)
• components for vertical stacking
(regulator plates, flow control plates etc.)
• blanking plates
6
Right-hand end plate with holes for fitting and with thread
for lifting eye bolt (M8)
3
2
4
1
5
6

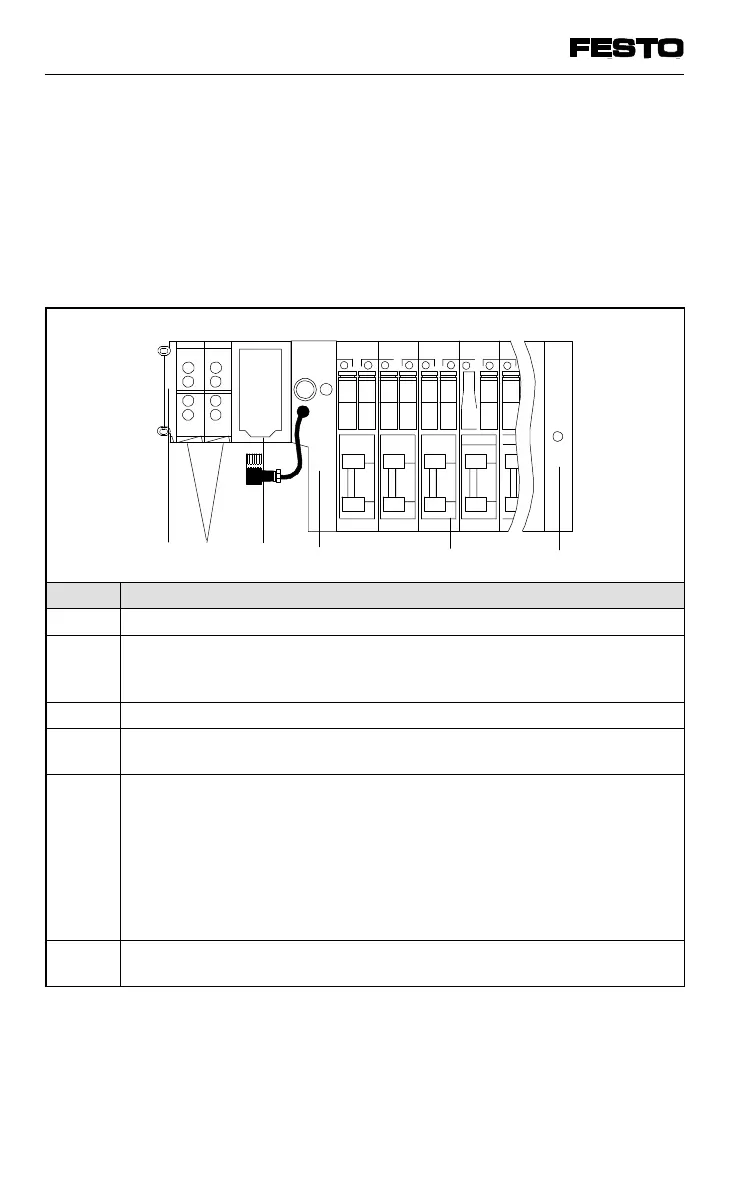

Fig. 1/6: Modules of valve terminal type 05
VIFB13 - 03/05 1. User instructions
9701 NH 1-9
