Pin assignment
The following diagram shows the pin assignment
of all outputs.
Pin assignment
4 inputs
LED
0
1
2
3

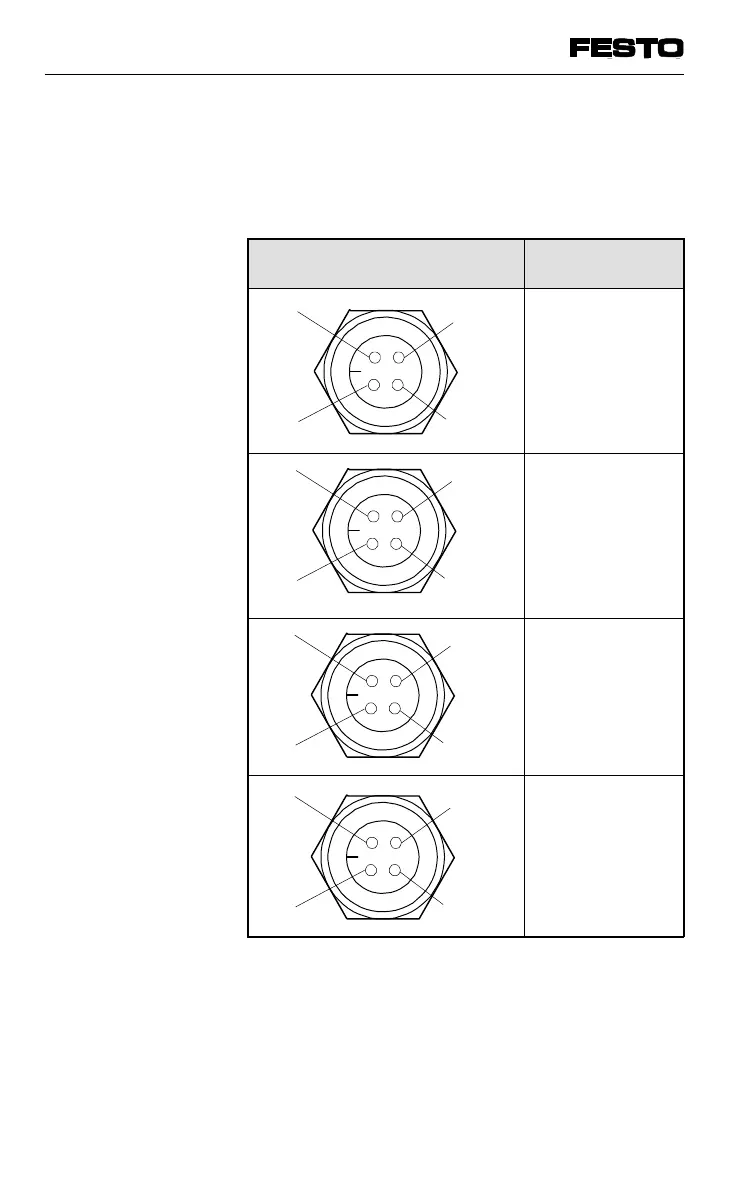

Fig. 3/22: Output module: pin assignment
(4 outputs)
0 V
Output
Ox
n. c.
n. c.
2
4
1
3
0 V
Output
Ox+1
n. c.
n. c.
2
4
1
3
0 V
Output
Ox+2
n. c.
n. c.
2
4
1
3
0 V
Output
Ox+3
n. c.
n. c.
2
4
1
3
