Festo FB13 - Configuration COM ET200 Version 4.x

Configuration COM ET200 version 4.x
Prerequirements
• The type file must be in the directory of your
configuration program
• The mask ET 200 - SYSTEM PARAMETER
must be processed
• The mask CONFIGURE must be accessed

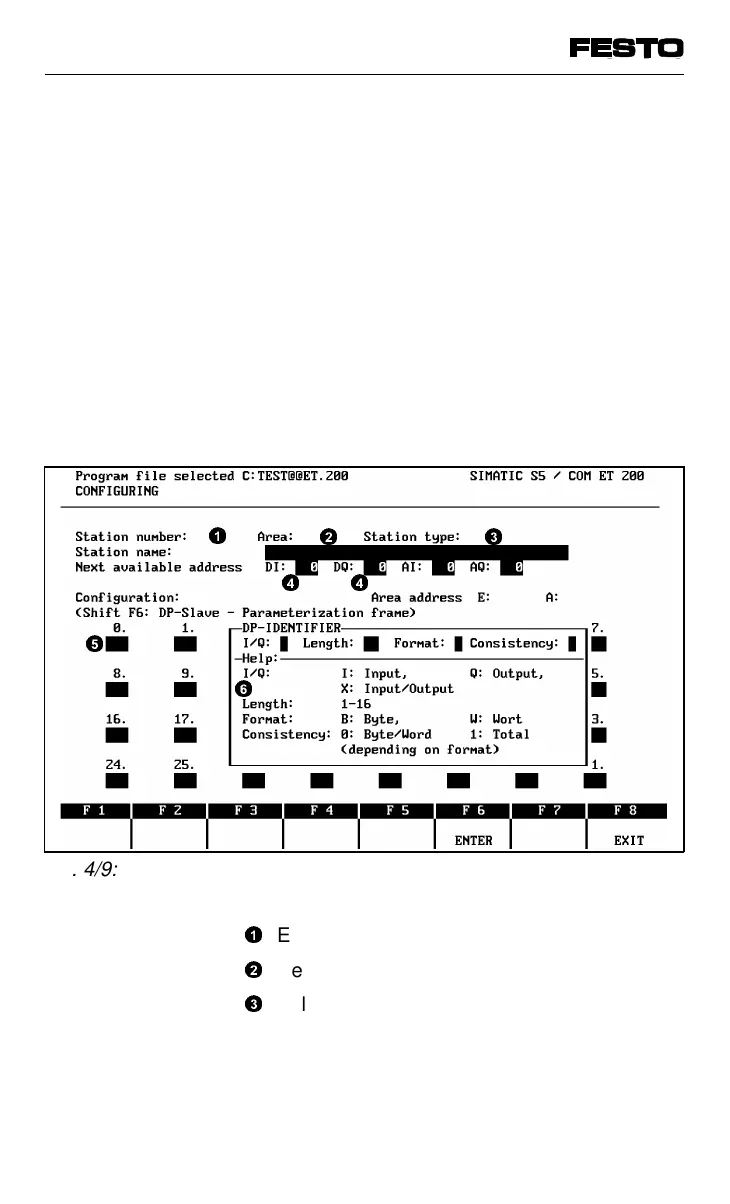

The diagram below shows the entries for a
typical valve terminal configuration.
1 Entry for station number (3, ..., 124)
2 Recommended entry: P
3 Selection of station type:
”FB13 VI 03-05 DP”.
1
23
44
5
6
Fig. 4/9: Configuration COM ET200 version 4.x
