Address selector switches
The station number of the valve terminal should
be set with the two address selector switches
and DIL switch element no. 1 on board 3. The
switches are numbered from 0...9. The arrow on
the address selector switches indicates the tens
or units figure of the station number set.
PLEASE NOTE
Station numbers (DP slave addresses) can
not be changed by the DP master module.
Addressing the valve terminals is only
possible by using the station number set
on the address selector switch.
6
5
2
7
8
0
1
3
4
9
6
5
2
78
0
1
3
4
9
AA
1
2
3
4
AA
AA
AA
AA
AA
Address selector switch
UNIT figure
Address selector switch
HUNDREDS figure
UNITS
TENS
Address selector switch
TENS figure

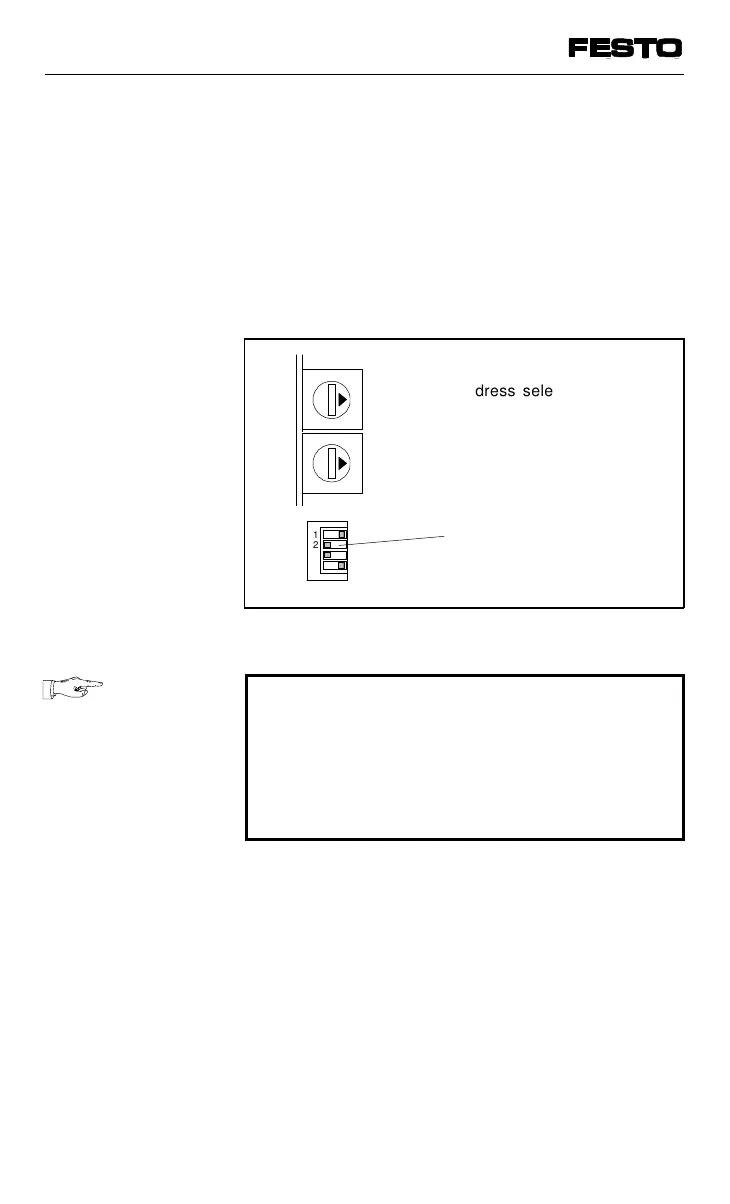

Fig. 3/5: Function of the addr. selector switches
