Fitting (see also following diagram):
PLEASE NOTE
•
Always place subsequently ordered modules
behind the last module before the end plate.
•
Do not fit more than 12 electric modules.
Fit the modules as follows:
• Fit a (new) seal on the right-hand contact sur-
face facing the node.
• Fit the module as shown below.
Seal
Fastening screws
max. 1 Nm

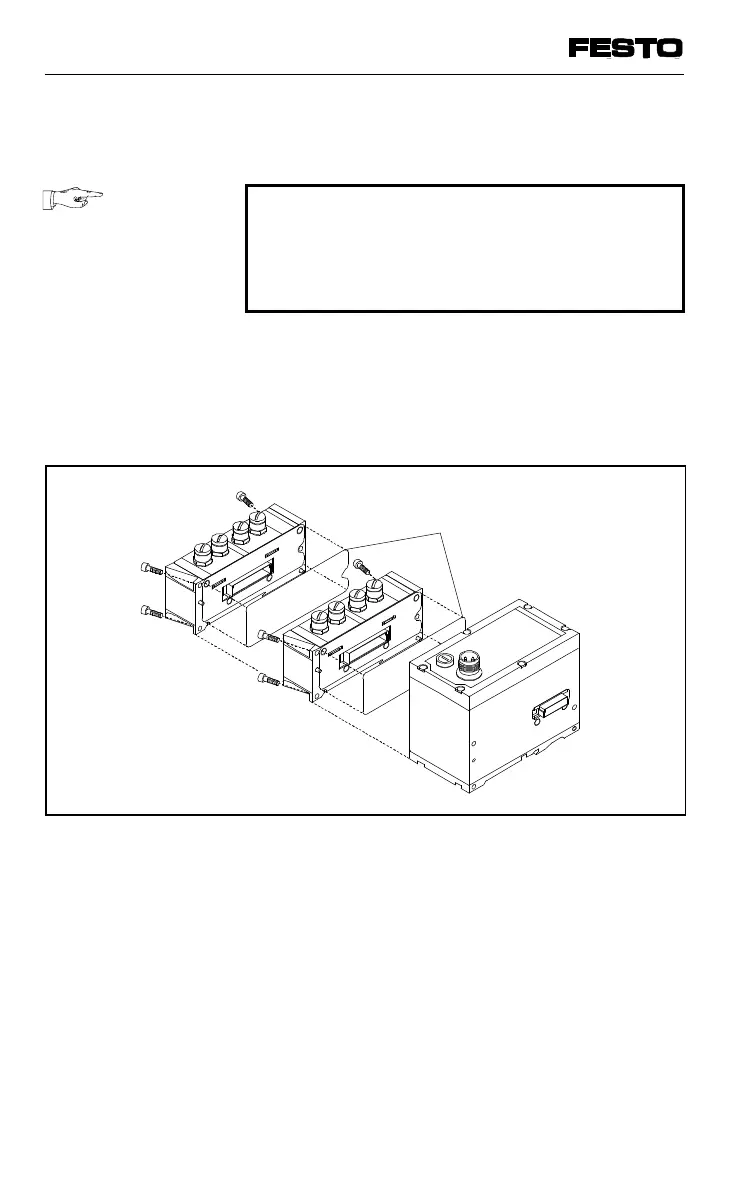

Fig. 2/1: Fitting electronic I/O modules
VIFB13 - 03/05 2. Fitting
9701 NH 2-5
