Screening connection
The Festo plug enables the screening in a
floating manner:
Clamp the screening of the fieldbus cable
under the cable clip of the Festo plug (see
diagram).
PLEASE NOTE
The cable clip in the Festo plug is capacitively
connected internally with the metal housing of
the Sub-D plug.
This is to prevent equalizing currents from
flowing via the screening of the fieldbus cable
(see diagram).
Cable clip,
screening
connection
Connection on
housing of
Sub-D plug

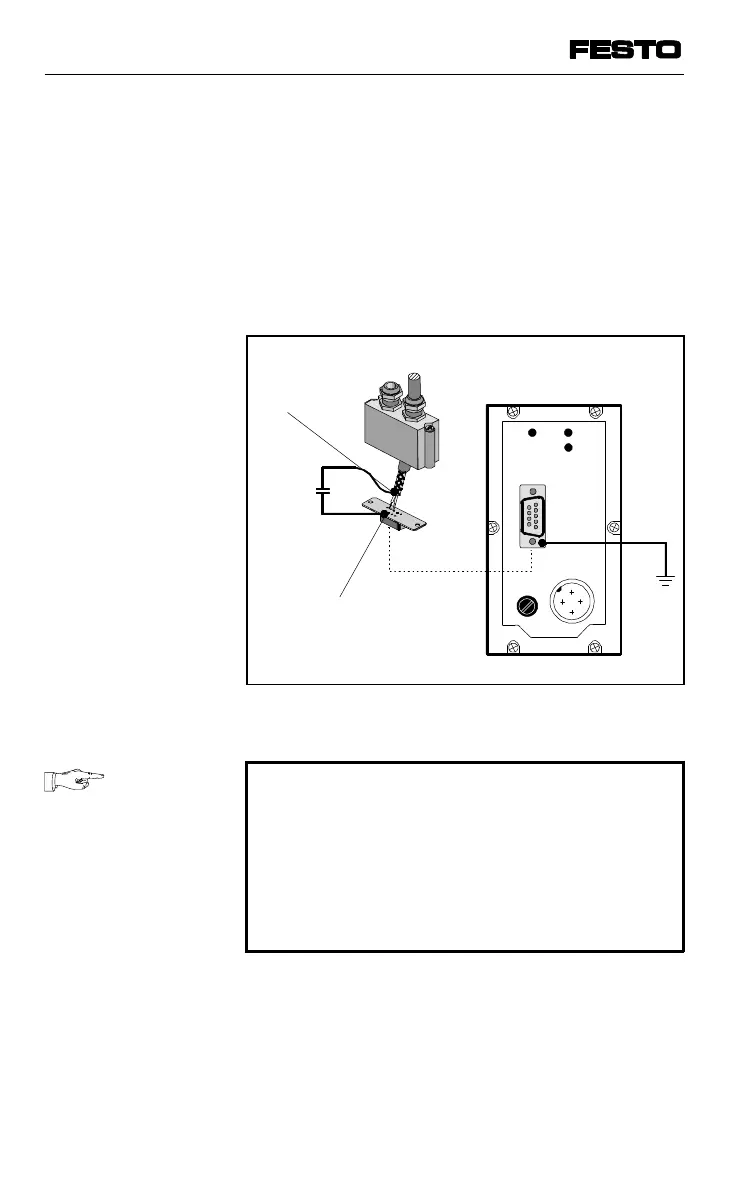

Fig. 3/17: Screening connection
VIFB13 - 03/05 3. Installation
3-30
9701 NH
