2. Fitting
2-3
Festo P.BE-SPC11-SYS-ASI-EN en 0203NH
Please note
When fitting the pneumatic components, observe also the
notes on fitting in the operating instructions supplied and
the notes on installation in chapter 3.
2.1 Fitting the SPC11
The SPC11 can be fastened to a flat surface with the aid of the
support brackets.

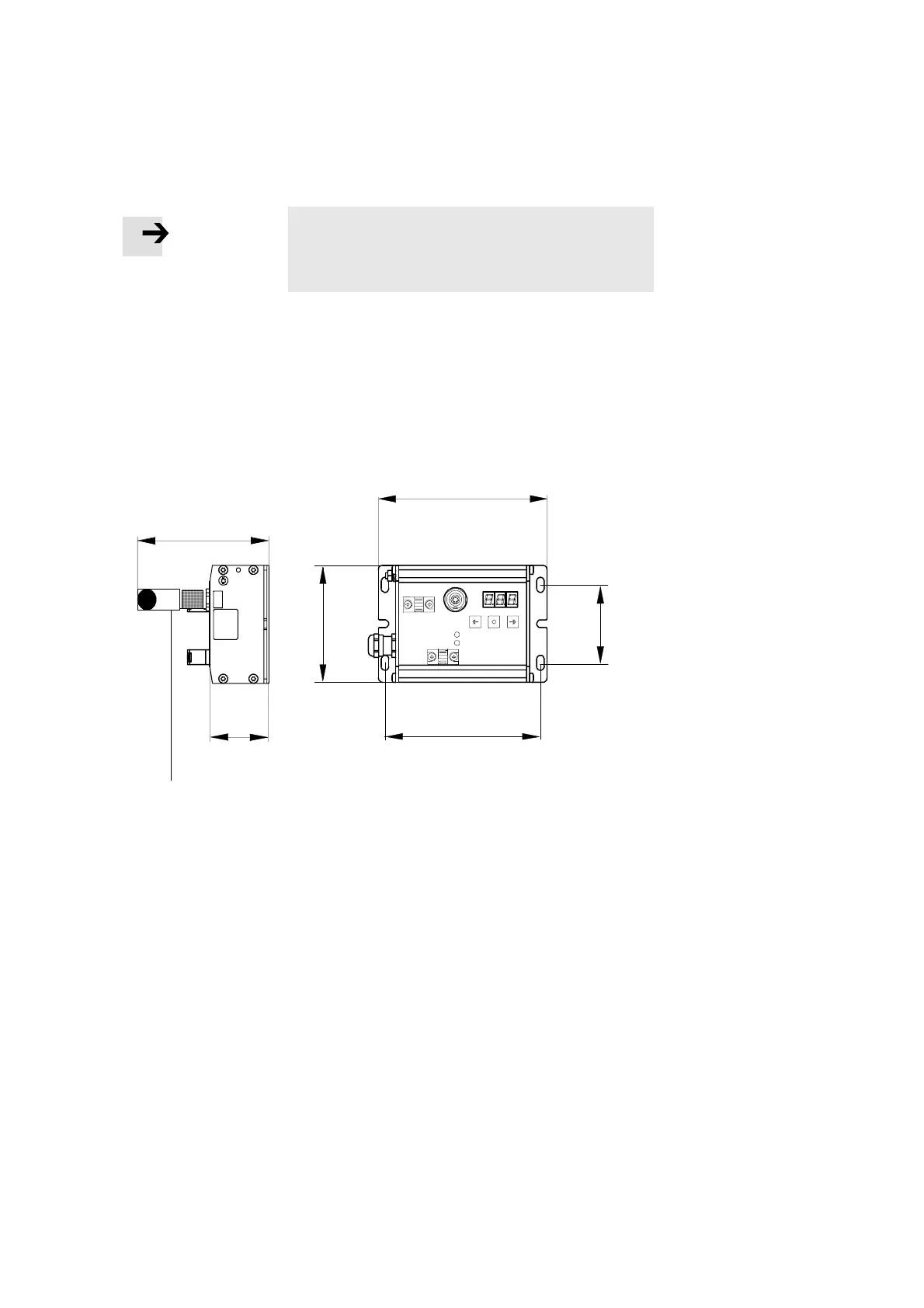

The diagram below shows the mounting surface and the di-
mensions for the four threaded holes screw size M4. Fasten
the SPC11 with at least 3 screws.
109.4 mm
63 mm78 mm
42 mm
118.4 mm
appro x. 91.8 mm
1
1 Plug in fitted state
Fig. 2/1: Fitting dimensions of the SPC11
