4. Commissioning
4-9
Festo P.BE-SPC11-SYS-ASI-EN en 0203NH
4. Hold the Enter key pressed down for at least 2 seconds.
(> 2 s). The val ue wil l then be transferred to the SPC11
and the cushioning stage will be shown (here 0). This is
shown by the letter C (Cushioning stage).

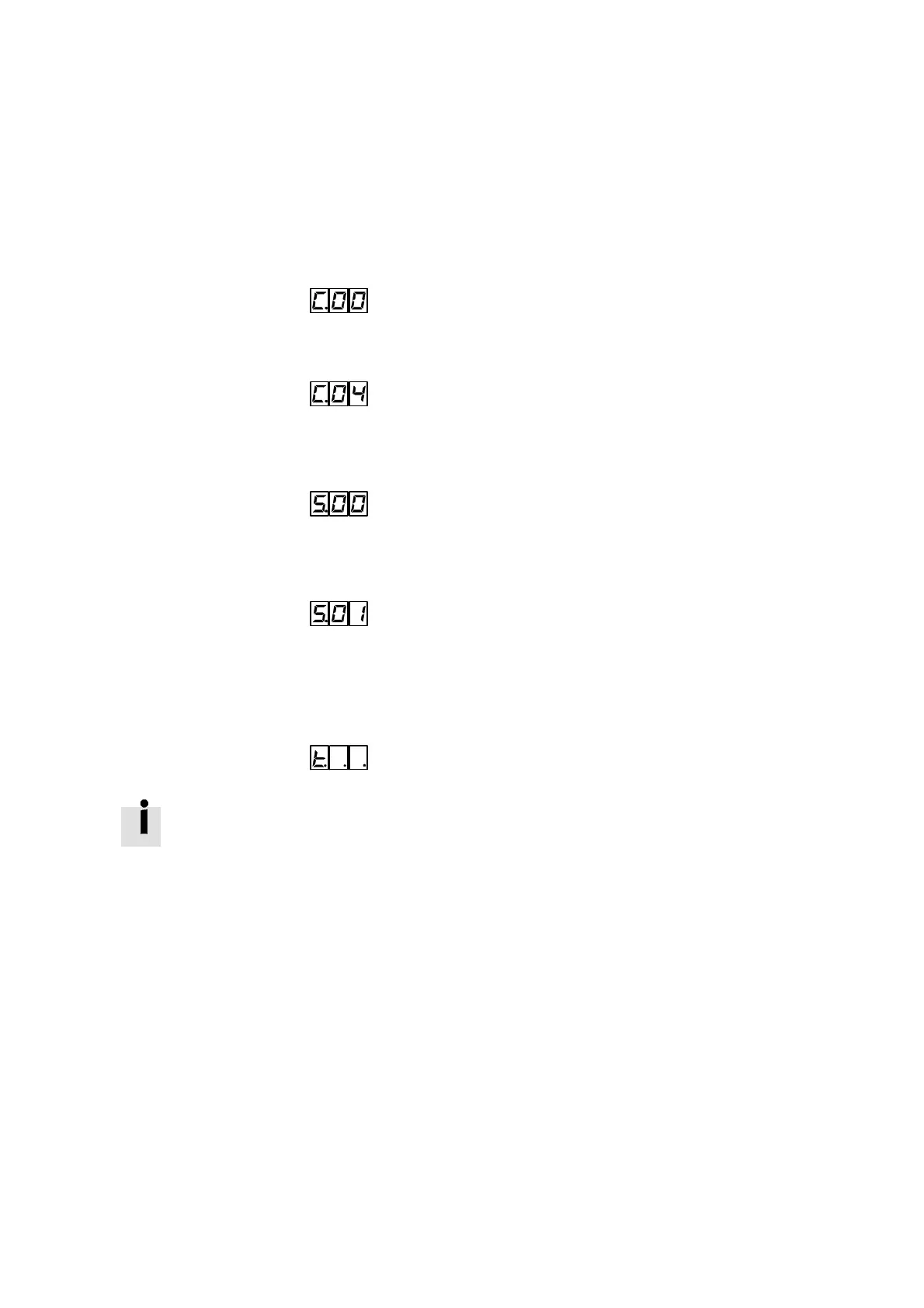

(C.00)
5. Now set the desired cushioning stage with the buttons +/-
(see axis-specific supplement), e.g. 04.
(C.04)
6. Hold the Enter key pressed down for at least 2 seconds.
(> 2 s). The val ue wil l then be transferred to the SPC11
and the system parameter will be shown (here 0).
(S.00)
7. Now set the system parameter valid for your structure
with the buttons +/- (see axis-specific supplement),
e.g. 01.
(S.01)
8. Hold the Enter key pressed down for at least 2 seconds.
(> 2 s). The val ue wil l then be transferred to the SPC11
and the readiness to carry out the teach procedure will b e
indicated by a flashing “t.” The three parameters are then
saved and pre-parametrizing (in the office) is completed.
The t flashes.
When all prerequisites for carrying out the teach procedure
have been made (see sections 4.3.1), the teach procedure
can be started (see sections 4.3.2).
9. If you wish to conclude pre-commissioning, switch off the
operating voltage.
