5.5.1.5.1 Colour change C1 type: red/green
The following switching thresholds are relevant for this colour change:
Basic measuring range
MS MES1 S2
RED GREEN RED

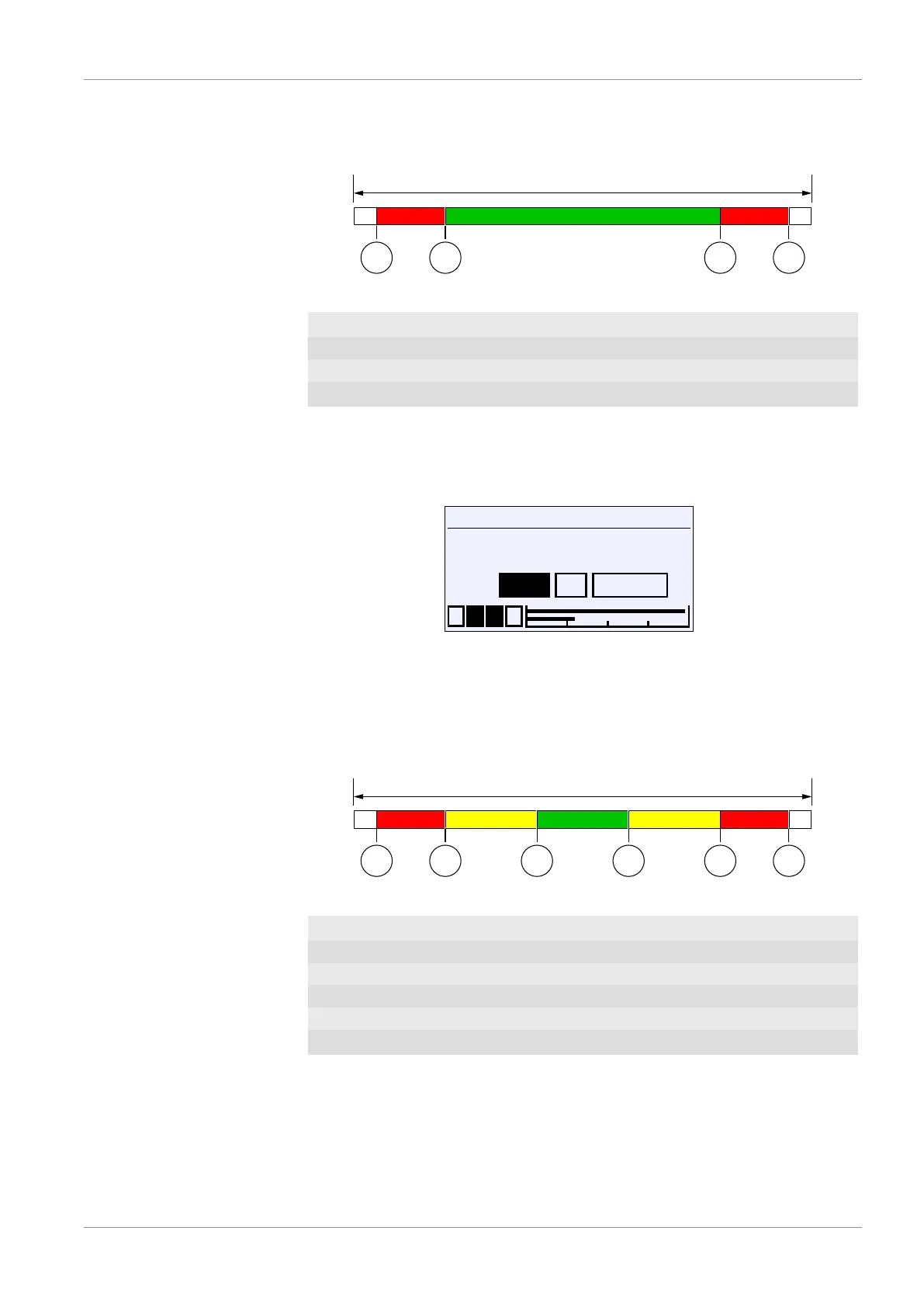

Fig.83: Colour change red/green
MS Meas.range C1 start
See menu Measurement C1 : [}47]
S1 Col.ch. C1 red–grn
S2 Col.ch. C1 grn–red
ME Meas.range C1 end
See menu Measurement C1 : [}47]
For example:
Input of the threshold red/green
Directory: \Parametrierung\Kanal 1\Farbwechsel K1\Farbw. C1 red-green
Level: 4
Col.ch. C1 red–grn
1 2 3 4
OK CancelEdit
25.000
Pa
U
Fig.84: Colour change C1 red-green
The other switch thresholds are entered in the same way.
5.5.1.5.2 Colour-change C1 type: red/yellow/green
The following switching thresholds are relevant for this colour change:
Basic measuring range
MS MES1 S2 S3 S4
RED YELLOW GREEN YELLOW RED
Fig.85: Colour change red/yellow/green
MS Meas.range C1 start
See menu Measurement C1 : [}47]
S1 Col.ch. C1 red-ylw
S2 Col.ch. C1 ylw-grn
S3 Col.ch. C1 grn/ylw
S4 Col.ch. C1 ylw/red
ME Meass.range C1 end
See menu Measurement C1 : [}47]
