Flexball Italiana S.r.l. 18

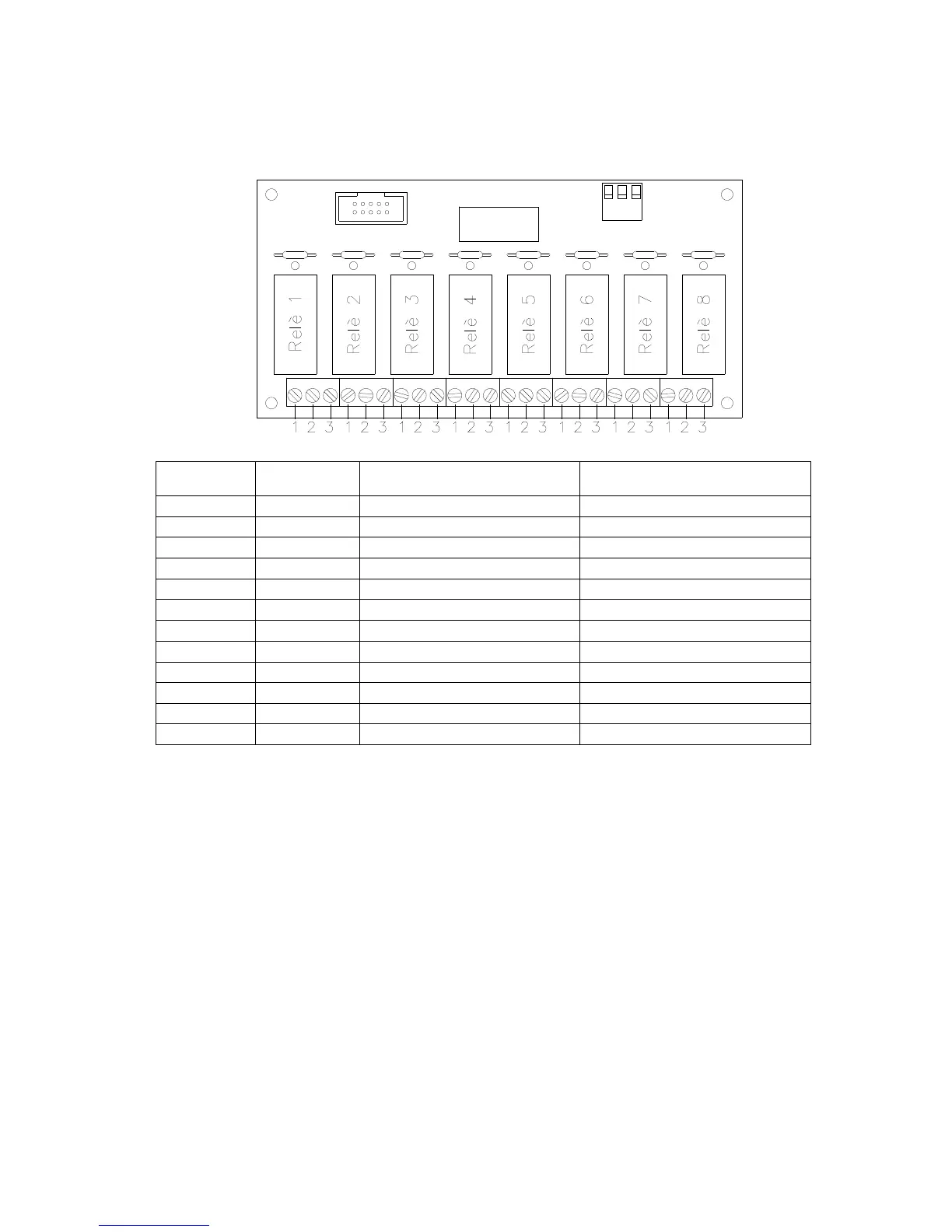

5.5.2. Relays PCB version 1.0 for electronic gearboxes
Relè right
gearbox
Relè right
gearbox
Solenoid gearbox Trim command
1.1 5.1 Forward (brown) Trim “-“ (nero)
1.2 5.2
1.3 5.3 V
dc
(yellow/green) V
dc
(brown)
2.1 6.1 Reverse (blue) Trim “+” (grey)
2.2 6.2
2.3 6.3
3.1 7.1 Trim “–“ (brown) Trailer (yellow/green)
3.2 7.2
3.3 7.3 V
dc
(yellow/green)
4.1 8.1 Trim “+” (blue)
4.2 8.2
4.3 8.3
