14.2.2. Parameters to configure the voltage output signal for electronic motors
For installations with electronic motor or hybrid motor (motor driven by a frequency converter), it is necessary
to set the minimum and maximum voltage output. Voltage signal profile is defined through parameters L*, H*
and C*, where “*” means 1,2,3,4.

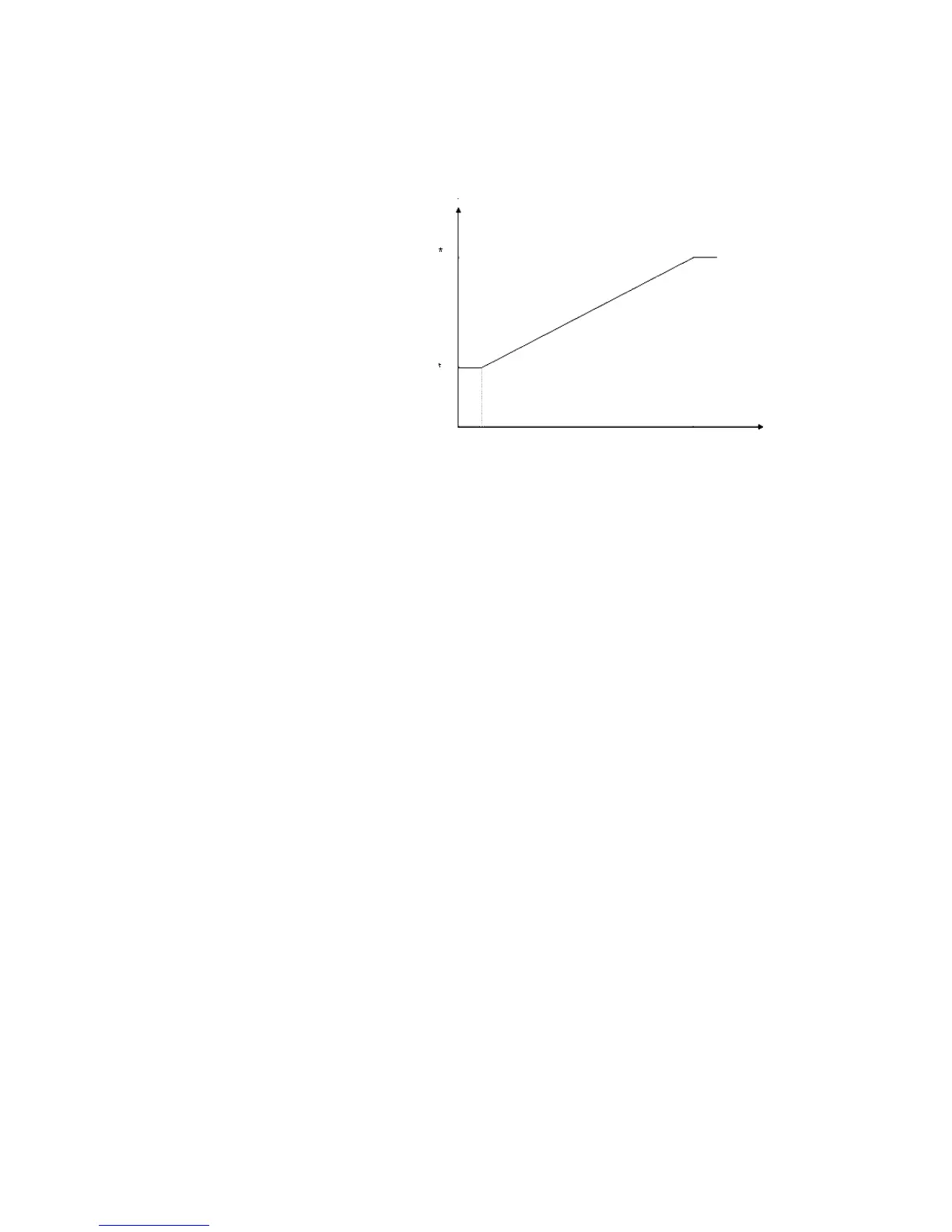

► Important: the graphic on the right
represents the voltage profile defined by
parameters L,C, H. Changes of factory values
could cause a system malfunctioning. Before
making any changes, contact our technicians.
C*
H*
V
L*
Lever stroke
