Flexball Series 3500 - Parameter A0 Adjustment

Flexball Italiana S.r.l. 55
14.2.1. Parameter A0
After you have programmed the gearbox strokes, you need to verify the correspondence between the lever’s
direction and the direction of the actuator. With parameter A0 you can modify the direction of the stroke of the
actuator. With the assumption that you have done all the stroke setting with A0 = 4 (factory setting), modify the
correlation between lever and actuator as described in the schemes of the next page.

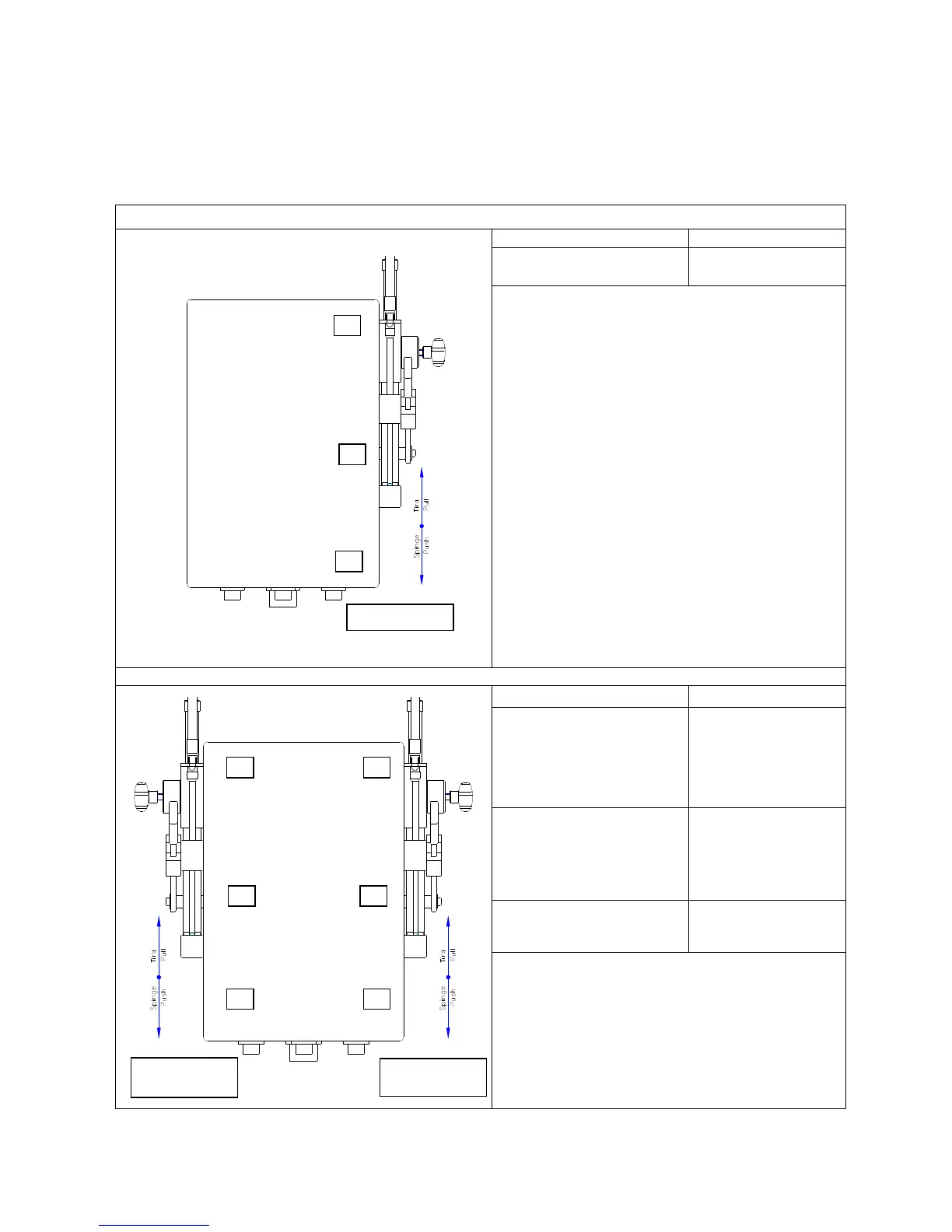

System with one electronic motor and one gearbox mechanically driven
Problem Solution
The gearbox push-pull
cable positions are inverted
Set A0=3
System with two electronic motors and two gearboxes mechanically driven
Problem Solution
Positions of the right
gearbox are inverted while
the positions of the left
gearbox are correct
Set A0=3
Positions of the left gearbox
are inverted while the
positions of the right
gearbox are correct
Set A0=2
Positions of both gearboxes
are inverted
Set A0=1
OL
OH
OF
Gearbox
OL
OH
Gearbox
right engine
IL
IH
Gearbox
left engine
IF OF
