Flexball Series 3500 - Installation Scheme C (2 Mechanical Actuators)

Flexball Italiana S.r.l. 32

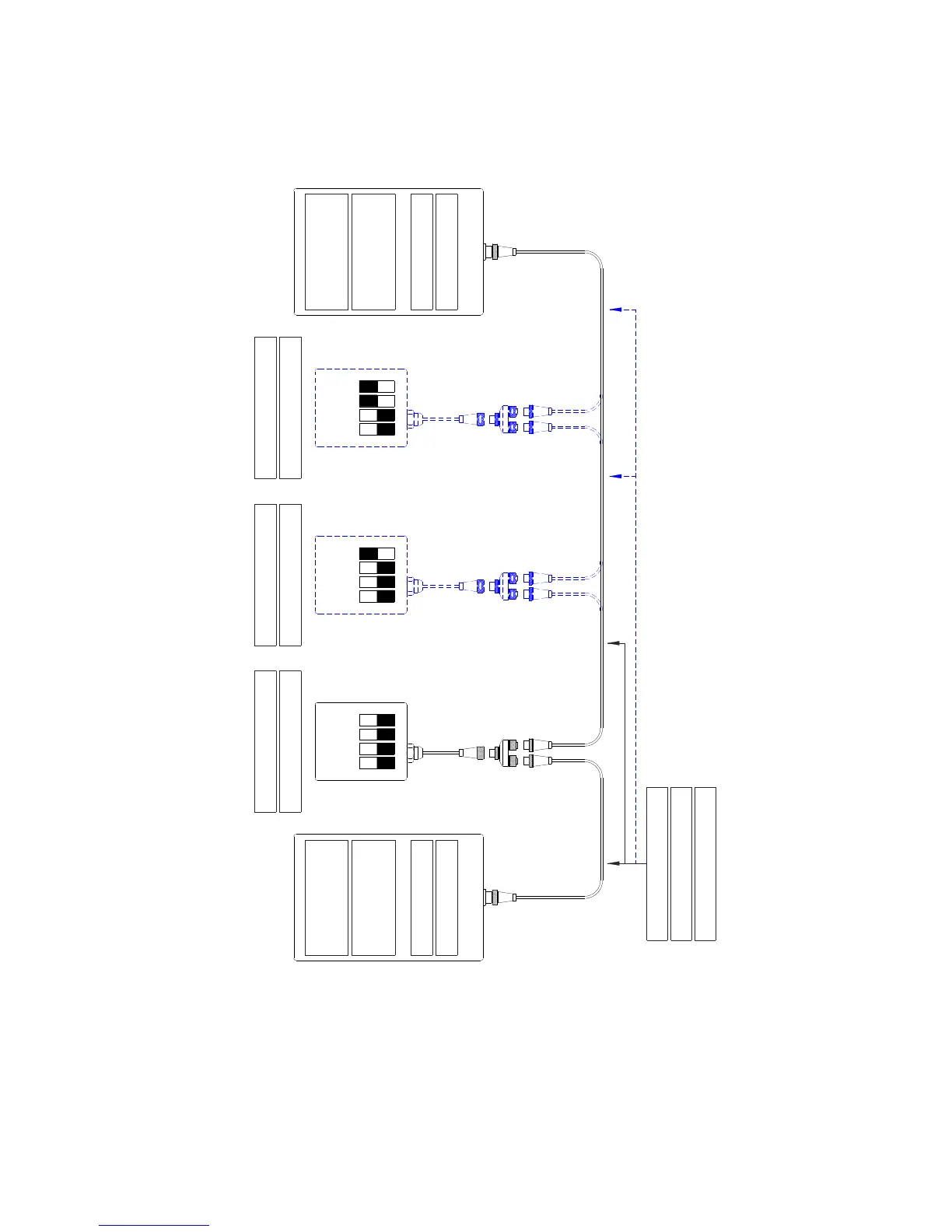

7.3. Installation with 2 mechanical actuators – solution C
Actuators are placed at the ends of the CANBus network
Cavo di trasmissione dati
Data transmission cable
Cod: 3500.33-*****
4321 4321 4321
Stazione di comando A
Command station A
Stazione di comando B
Command station B
Stazione di comando C
Command station C
JP14: NO (address)
JP19: YES (end-line)
Actuator for left
engine
Attuatore motore
sinistro
JP14: YES (address) JP19: YES (end-line)
Actuator for right
engine
Attuatore motore
destro
This installation scheme, typical for catamaran applications, is valid for systems with:
 Up to 3 command stations and 2 engines with mechanical throttle, mechanical gearbox, with/without
trim;
 Up to 3 command stations and 2 hybrid engines with mechanical throttle, mechanical gearbox,
analogue outputs for electric engine inverter driven, with/without trim.
