11. Programming of the actuator, general guidelines

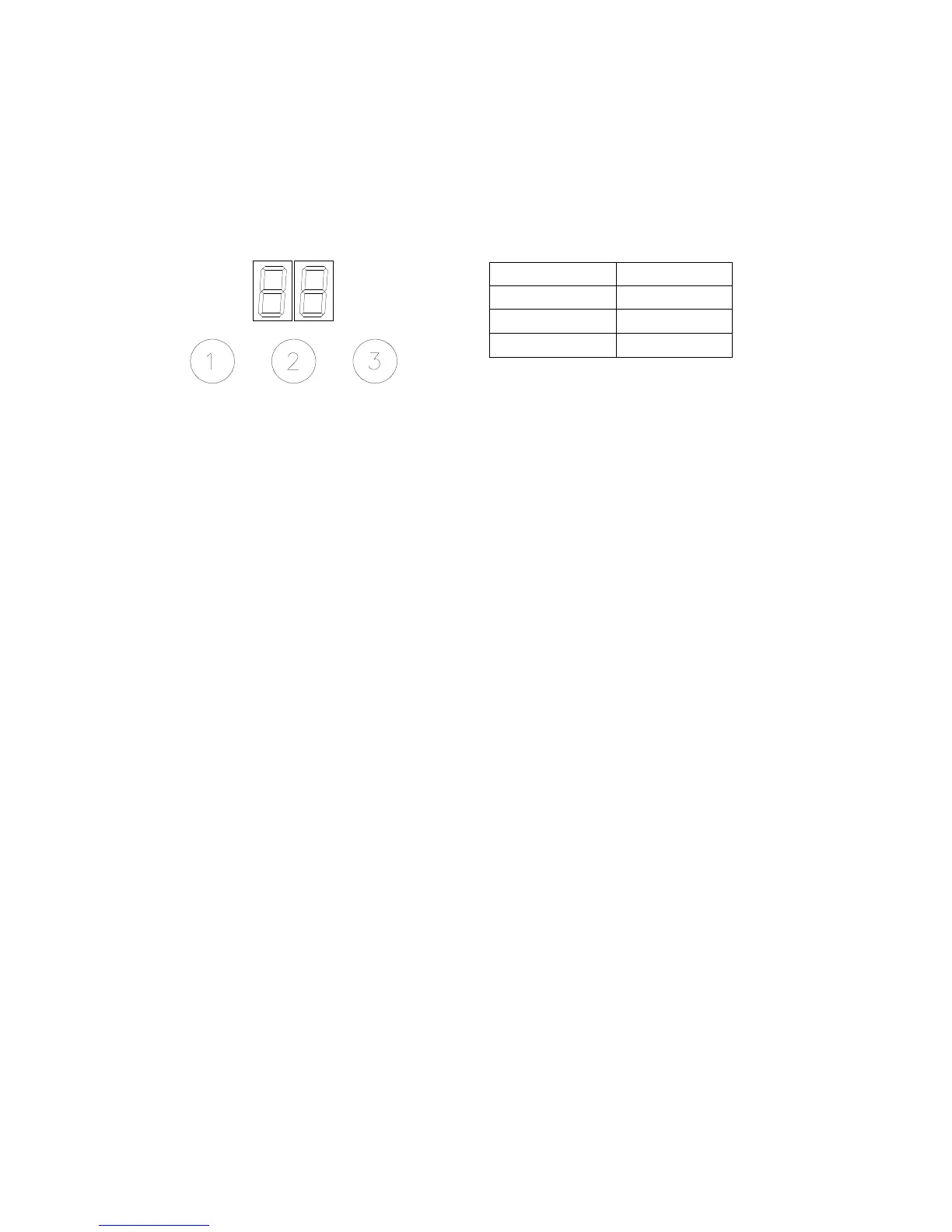

11.1. Programming keypad
The keyboard has a display with two figures and three programming pushbuttons/keys.
► Important 1: command stations must be set to neutral in order to be able to access the programming of the
actuators including the setting of parameters.
► Important 2: command stations are already programmed in the factory and it should not be necessary to
make any changes. In case it is required to modify their configuration, refer to chapter 6.1.
11.2. Display and Parameters
After power up, the display shows a sequence of 2 codes: ‘FI’ and ‘XX’:
‘FI’ means Firmware;
‘XX’ is the firmware version.
After some time the display shows “_ _”. To enter the Parameters, press at the same time keys “1” and “2”. It is
now possible to move from one parameter to the other using the keys “1” and “2”.
For the setting of the specific parameters follow this procedure:
1. with the actuator turned on (the display shows _ _) press both keys “1” and “2” and the first parameter
will appear on the display;
2. pressing either “1” or “2” it is now possible to scroll in one or the other direction, all the parameter lists
3. pressing the key “3” the value of the parameter will be shown on the display. The display is now
blinking and it is possible to modify the parameter value, using the keys “1” and “2”;
4. when the parameter has been modified, use the key “3” (↵) to store the value of the parameter; the
display stops blinking.
5. to set the other parameters, scroll the menu using the keys “1” and “2” and when the parameter that
you would like to change is reached, follow this procedure starting from the point 3.
Colour of key Reference
Red 1 (-)
Yellow 2 (+)
Grey
3 (↵)
