Flexball Series 3500 - Outgoing Cable Wiring for Propulsion Types

Flexball Italiana S.r.l. 46

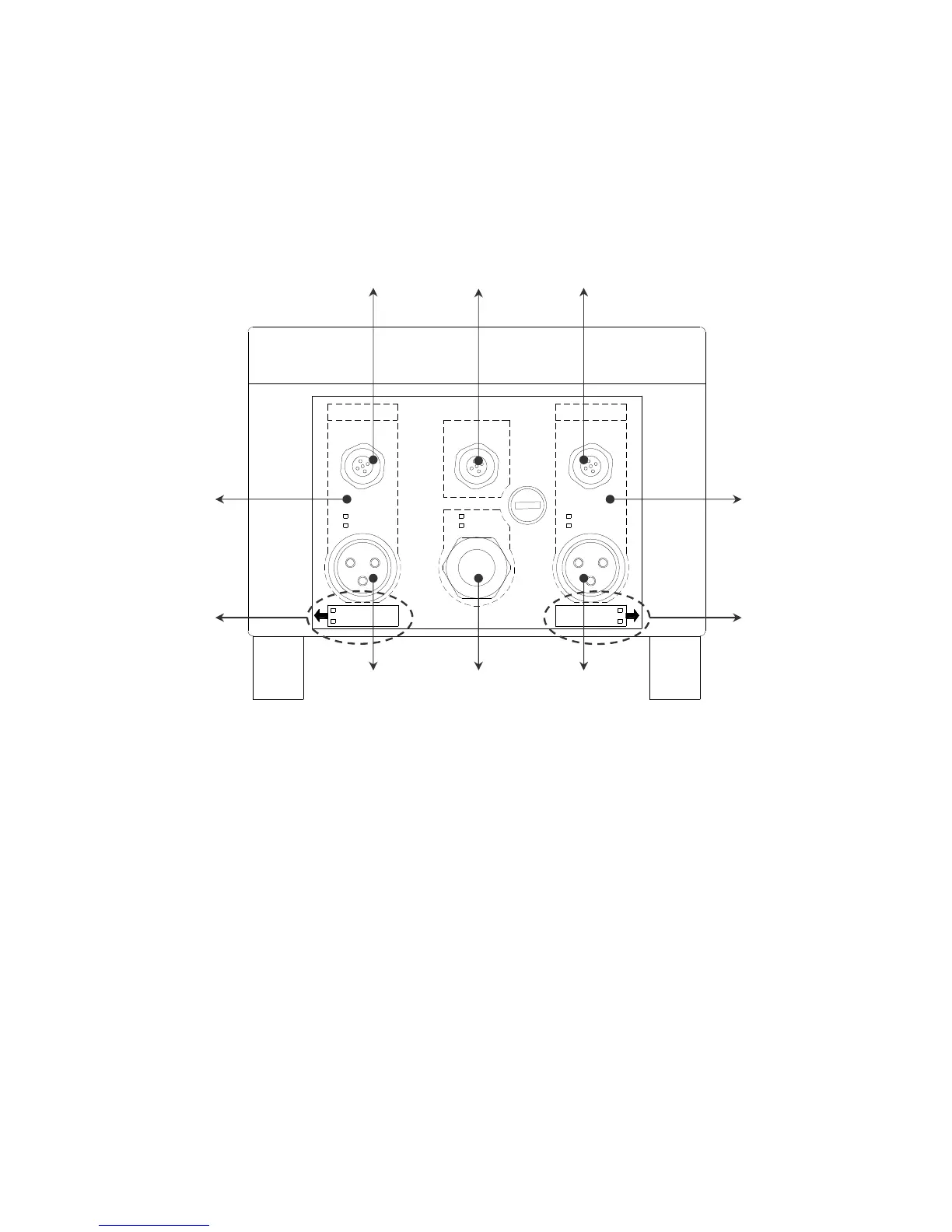

10.2. Electrical cabling of the outgoing cables from the actuator
10.2.1. Cabling of actuators for mechanical and hybrid propulsion systems
► Important: this cabling is valid for the following systems, with or without trim:
 mechanical motor and mechanical gearbox (only 1 propulsion group per actuator)
 mechanical engine and solenoid driven gearbox (up to 2 propulsion groups per actuator)
 electronic engine and mechanical gearbox (up to 2 propulsion groups per actuator)
+12 V
Throttle
Fuse (+12V)
Trim
Clutch
Trim
Clutch
THROTTLE
CLUTCH
LEFT ENGINE RIGHT ENGINE
THROTTLE
CLUTCH
ThrottleCanbus
+24 V
Right engine
Motor ECU/inverter
Voltage
supply
Solenoid driven
gearbox/Trim
(flap)
Motor ECU/
inverter
Solenoid driven
gearbox/Trim
(flap)
CANbus data
transmission cable
Left engine
Function of the
push
-
pull cable
Function of the
push
-
pull cable
