Flexball Series 3500 - Mechanical Motor;Gearbox Programming

Flexball Italiana S.r.l. 52
13. Programming of the actuator in installations with mechanical
motor and gearbox
13.1. Mounting of the push-pull cable
Please refer to section 9.
13.2. Programming of the push-pull cable strokes
For the general programming instructions please refer to section 12. With this kind of actuator you must
program 5 positions (2 for the throttle and 3 for the gearbox).
Gearbox and throttle positions have to be set according to the parameters
of the above table.

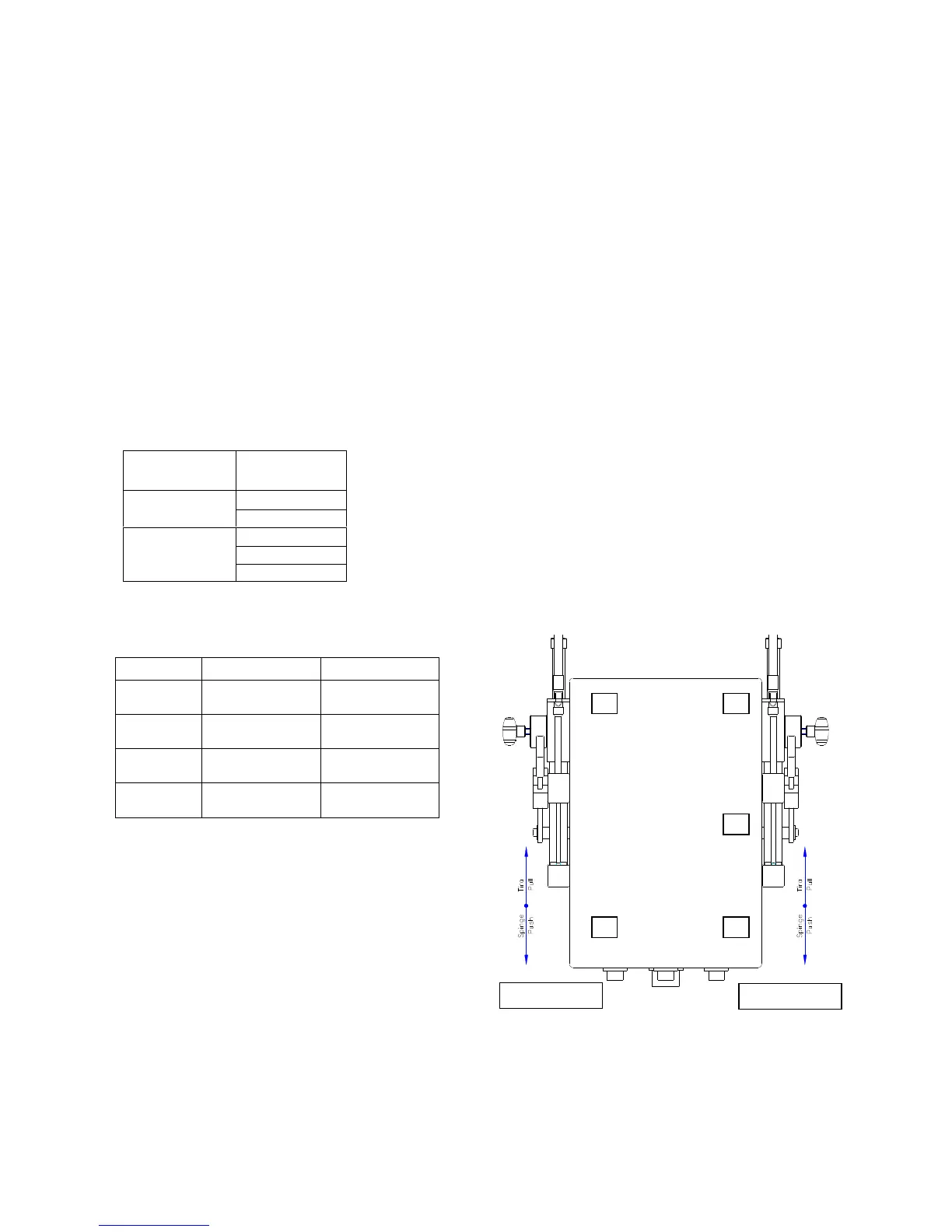

Parameter A0 associates the direction movements of throttle and gearbox
to the command of the lever. Scheme and table here below define the
directions of throttle and gearbox in relation to the 4 possible values of
parameter A0, with the assumption to move the command station
lever in forward direction (gearbox forward and motor accelerated).
Value A0 Throttle Gearbox
1
Push
(direction UL)
Pull
(direction OH)
2
Push
(direction UL)
Push
(direction OL)
3
Pull
(direction UH)
Push
(direction OL)
4
Pull
(direction UH)
Pull
(direction OH)
Le impostazioni di fabbrica prevedono A0 = 4
Parameters
to set
Value on
display
UL
Throttle
UH
0L
0F
Gearbox
0H
OL
OF
OH
Gearbox
UL
UH
Throttle
