Flexball Series 3500 - Installation Scheme A (2 Mechanical Actuators)

Flexball Italiana S.r.l. 30

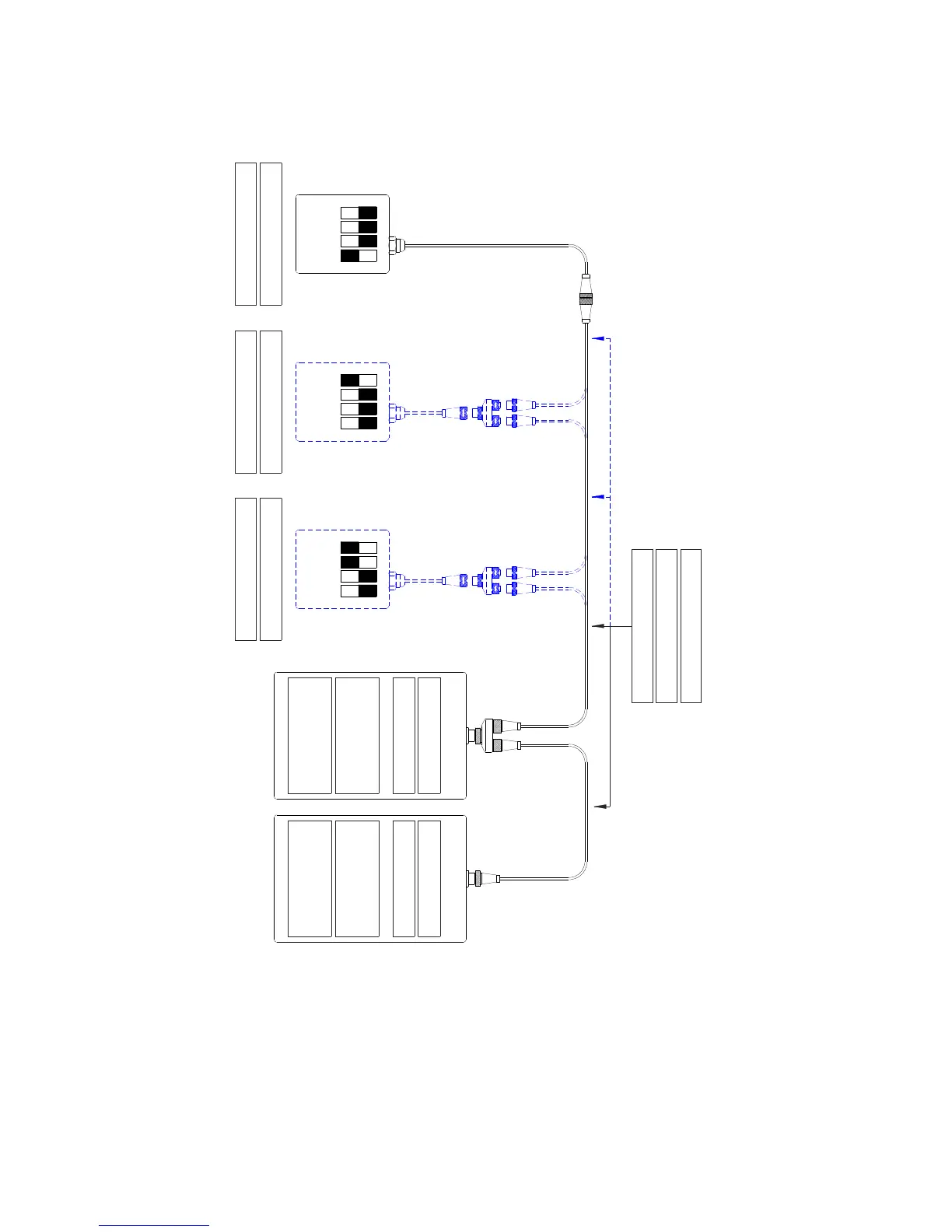

7.1. Installation with 2 mechanical actuators – solution A
Cavo di trasmissione dati
Data transmission cable
Cod: 3500.33-*****
JP19: YES (end-line) JP19: NO (end-line)
JP14: YES (address)JP14: NO (address)
Actuator for left
engine
Attuatore motore
sinistro
Attuatore motore
destro
Actuator for right
engine
4321
Command station A
Stazione di comando A
4321
Command station B
Stazione di comando B
4321
Command station C
Stazione di comando C
This installation scheme is valid for systems with:
• Up to 3 command stations and 2 engines with mechanical throttle, mechanical gearbox, with/without
trim;
• Up to 3 command stations and 2 hybrid engines with mechanical throttle, mechanical gearbox,
analogue outputs for electric engine inverter driven, with/without trim.
