Flexball Italiana S.r.l. 9
COMMAND
ENGINE 2
WARM/S
ENGINE 1
4. Command station
Command stations are classified as devices for the control of one or two engines, with or without trim/flap
command. Up to three command stations can be mounted in the same installation. Depending on the
application, it is very important to set the dip-switches present on the bottom part of the command station, as
described in sections 4.2 and 8.1 of this manual.

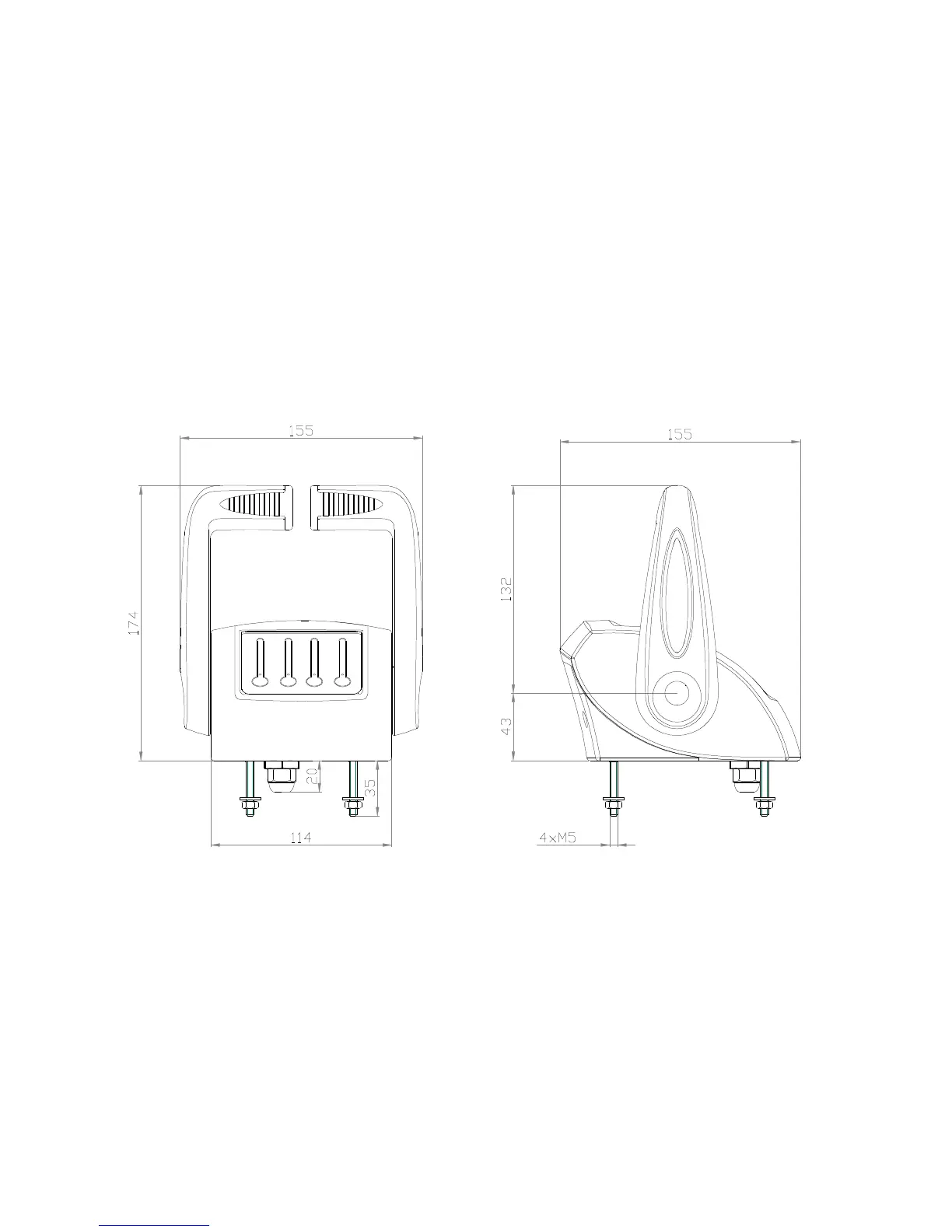

4.1. Dimensions
4.1.1. Command station series 3500
► Important: in case the screws to fix command station to the dashboard panel are not long enough, don’t
open the command station to replace them but ask for an adaptation kit.
