Flexball Series 3500 - Page 37

Flexball Italiana S.r.l. 37

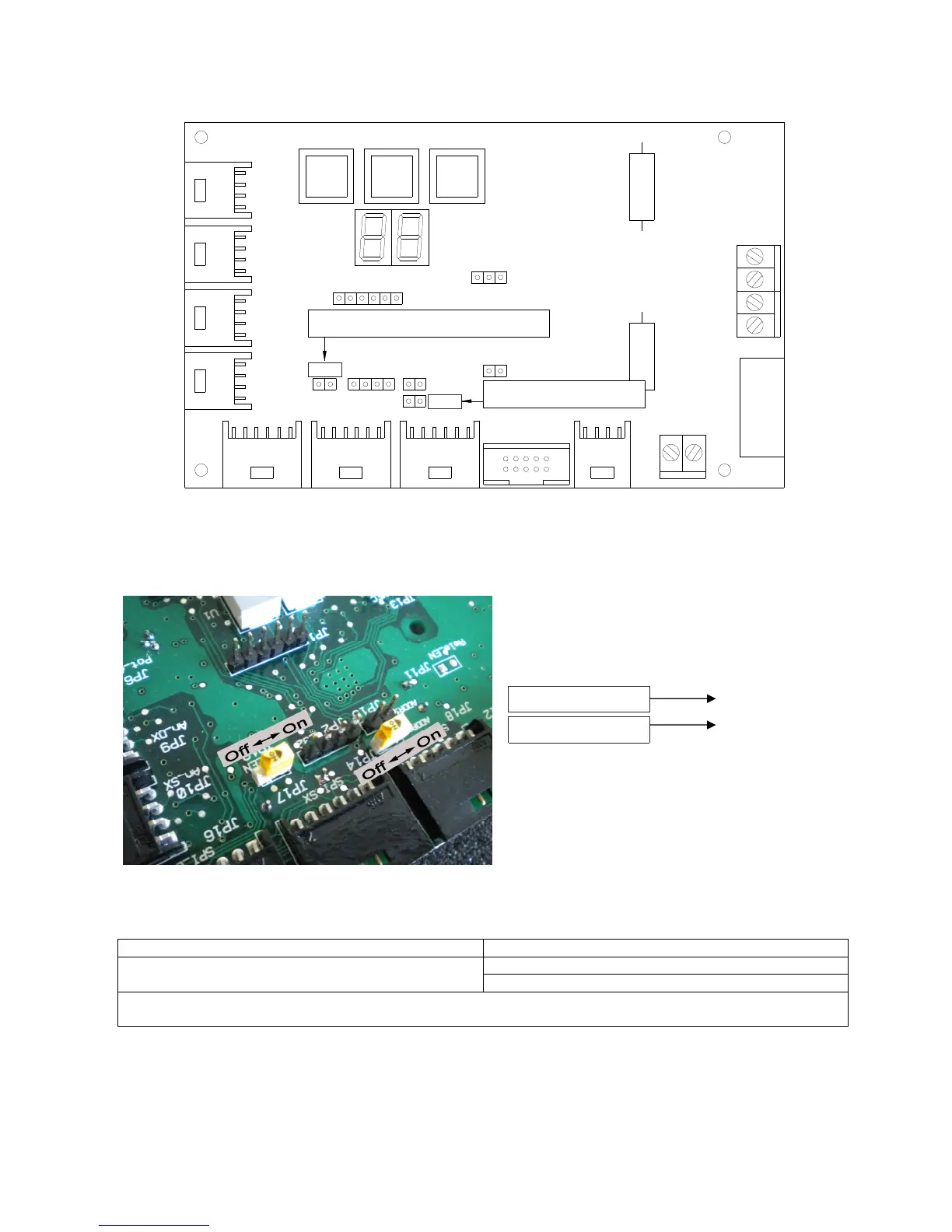

Actuator PCBoard version 3.1
JP12
UP
DOWN
ENTER
JP1
JP2
JP7
Fuse
JP13
JP11
JP14
JP15
JP19
JP8
JP3
JP18
JP17
JP16
JP10
JP9 JP6 JP5
Jumper di abilitazione resistenza di fine linea
Jumper to enable end-line resistance
Jumper di abilitazione indirizzo
Jumper to enable address
Fusibile
JP14 defines the CAN Bus address of the actuator. Factory setting is JP14 = OFF
JP19 enables (ON) or disables (OFF) the line termination. Factory setting is JP19 = ON
In some documentation, alternative to ON or OFF
there are the respectively YES and NO, e.g.:
JP19: YES (end-line)
JP14: YES (address)
The actuator configuration changes according if the system is with one or two actuators:
Installations with 1 actuator Installations with 2 actuators
left actuator is with JP14 = OFF
JP14 = OFF
right actuator is with JP14 = ON
The setting of JP19 is depending if the actuator is in the middle (JP19 = OFF) or at the end of the CANBus
network (JP19 = ON)
the switch
JP14 is ON
the switch JP19 is ON
