Starter motors: the cables that connect the battery to the starter motors must have a cross-section of at least 50 mm
2
(both
the “plus” and the “minus” cable).
Electrical installation:
the “minus” cable of the actuator must
be connected directly to the battery.
Actuator: each actuators must be con
nected with both
batteries. The “plus” cables must be fitted with a 10A
decoupling diode. In this way the actuator will be supply from
the most charged battery. The minimum section of the cable
must be of 2,5 mm
2
Actuators: each actuator must be supplied
from its
battery.

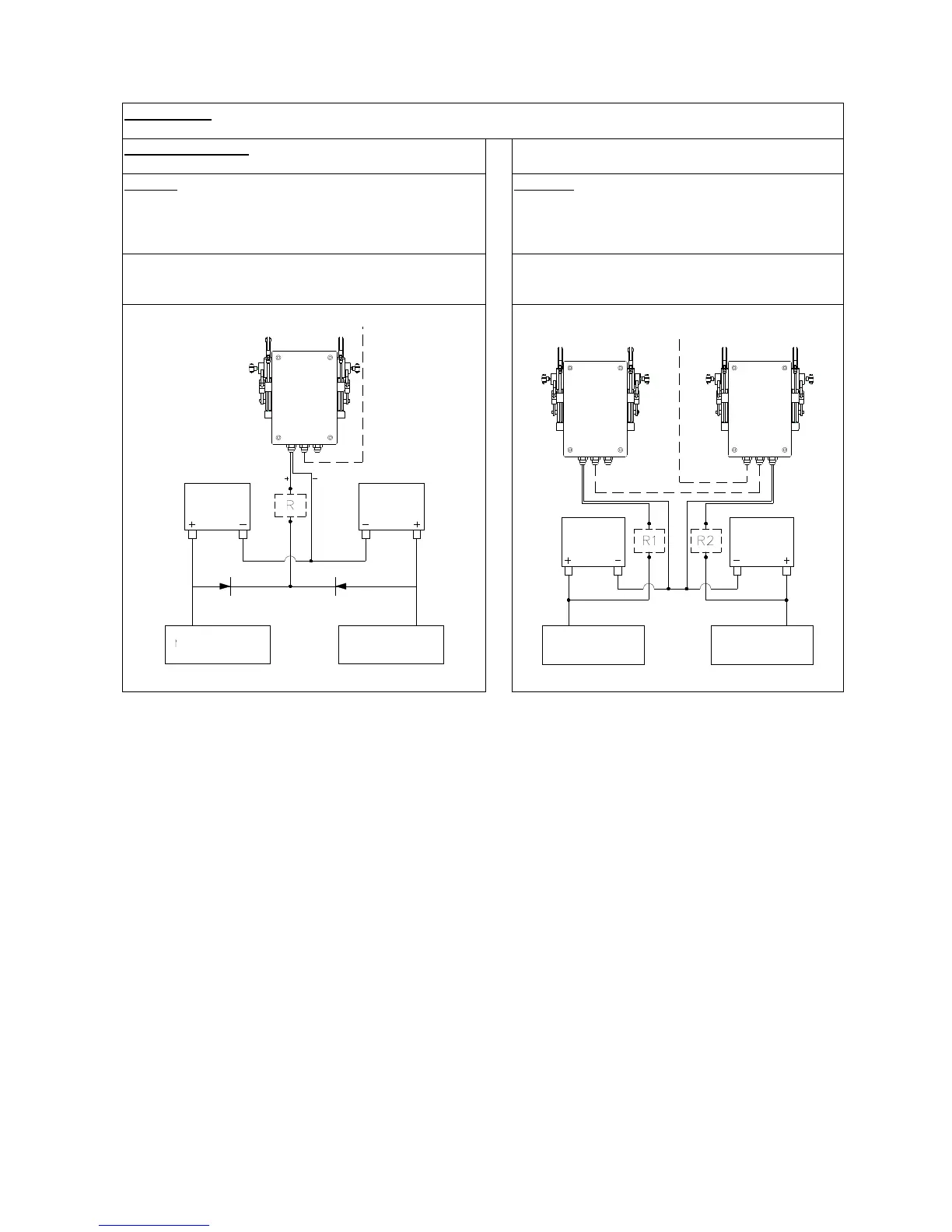

‘R’ is a relay that is activated by the keys of the port and the
starboard engine
‘R1’ is a relay that is activated by the key of the port
engine while ‘R2’ is a relay that is activated by the key
of the starboard engine
Actuator
Battery
Battery
Starboard engine Port engine
Actuator Actuator
Battery Battery
Starboard engine Port engine
