FLIR M400 User Manual

List of Icons
432-0012-00-10 Version 100 December 2015 55
Elevation (Tilt) Shows the vertical tilt of the camera. The shaded triangle
shows the approximate camera position.
Focus Scale Shown when autofocus is invoked to indicate the progress of
the operation.
Home
Indicates the camera is in the home position; the icon
flashes when a new home position is set.
Lock zoom Lock the zoom of cameras to the active payload, whenever
possible.
Mirrored View
Polarity
Color Palette
Spotlight
(continuous)
Spotlight (SOS)
Spotlight (Flash)
NMEA BWS
Message
Receiving NMEA messages using Bearing and Distance to
Waypoint, Great Circle (BWC) sentence format has been
enabled; this is also known as slew to waypoint.
NMEA RSD
Message
Receiving NMEA messages using the Radar System Data
(RSD) sentence format has been enabled; this is also known as
radar cursor tracking.

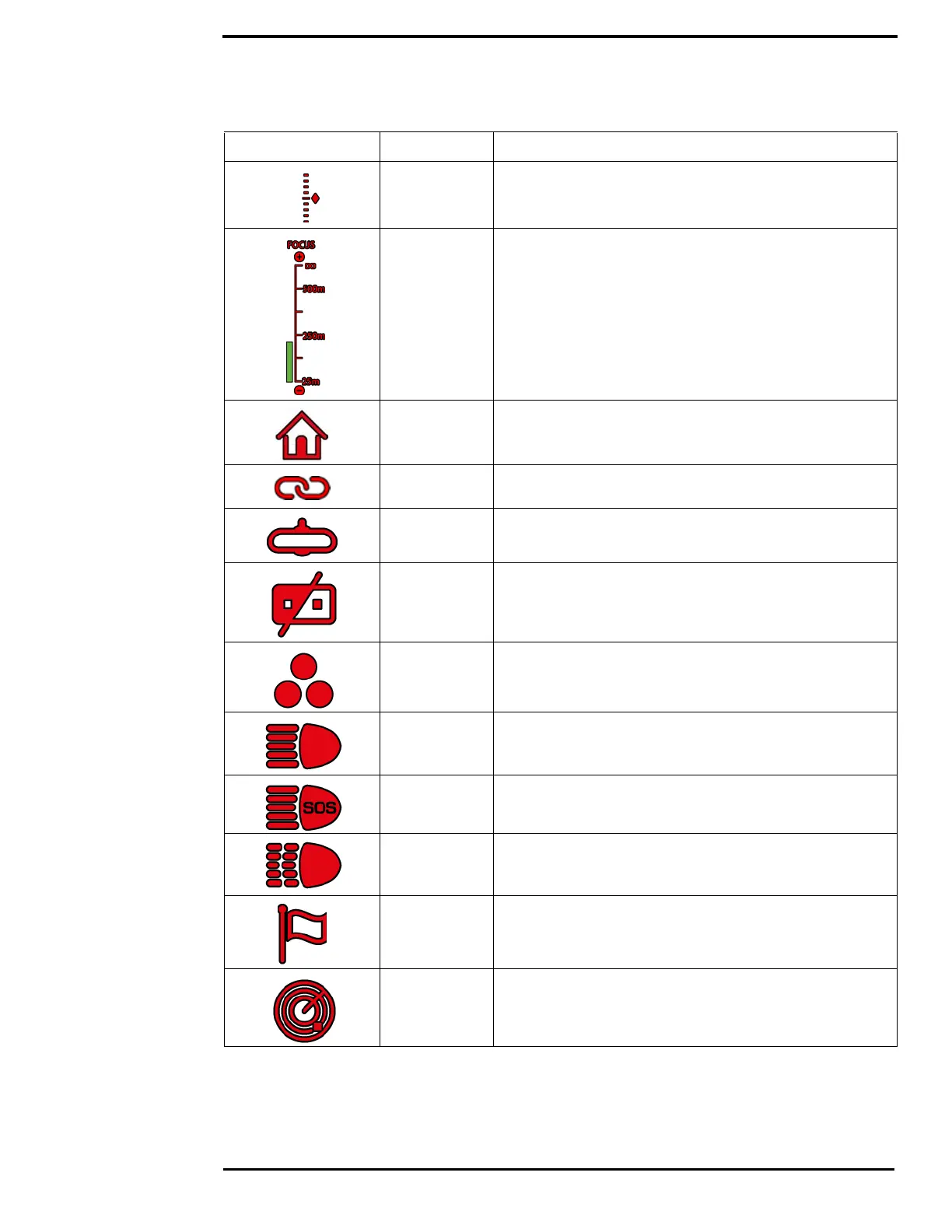

TABLE 6.2 Video Display Icons (Continued)
Icon Name Description

FLIR M400 Specifications

General

Thermal Resolution	640 x 480
Image Stabilization	Yes
Spectral Range	7.5 - 13.5 µm
Frame Rate	30 Hz
Power Supply	24 VDC
Digital Zoom	8x
Pan/Tilt	360° continuous pan, ±90° tilt
Video Output	HD-SDI
Environmental	IP66
Sensor Type	VOx Microbolometer
Thermal Sensitivity	<50 mK
Temperature Range	+55°C (–13°F to +131°F)
Operating Temperature	-25°C to +55°C (-13°F to +131°F)
