FLIR X-Series User Manual

5 – X-series Camera Controller
X-series User’s Manual 26
Correction Sources
Internal
Use the internal flag as the NUC source. The flag is not
temperature controlled and floats at camera internal
External
Use an external blackbody as the NUC source. Program will
prompt the user to place each source in front of the camera. NUC
source needs to fill the entire field of view.
Correction Process Controls
(will be disabled if command not available)
Abort
Stops the NUC process.
Continue
When prompted for an action, click “Continue” when action has
been performed.
Start
Starts the selected NUC process.
5.4 Advanced User Mode
The Advanced User Mode exposes the full functionality of the camera controller. The controller looks
similar to the basic mode, but additional tabs will appear on each page. This will be the preferred
mode for most users.

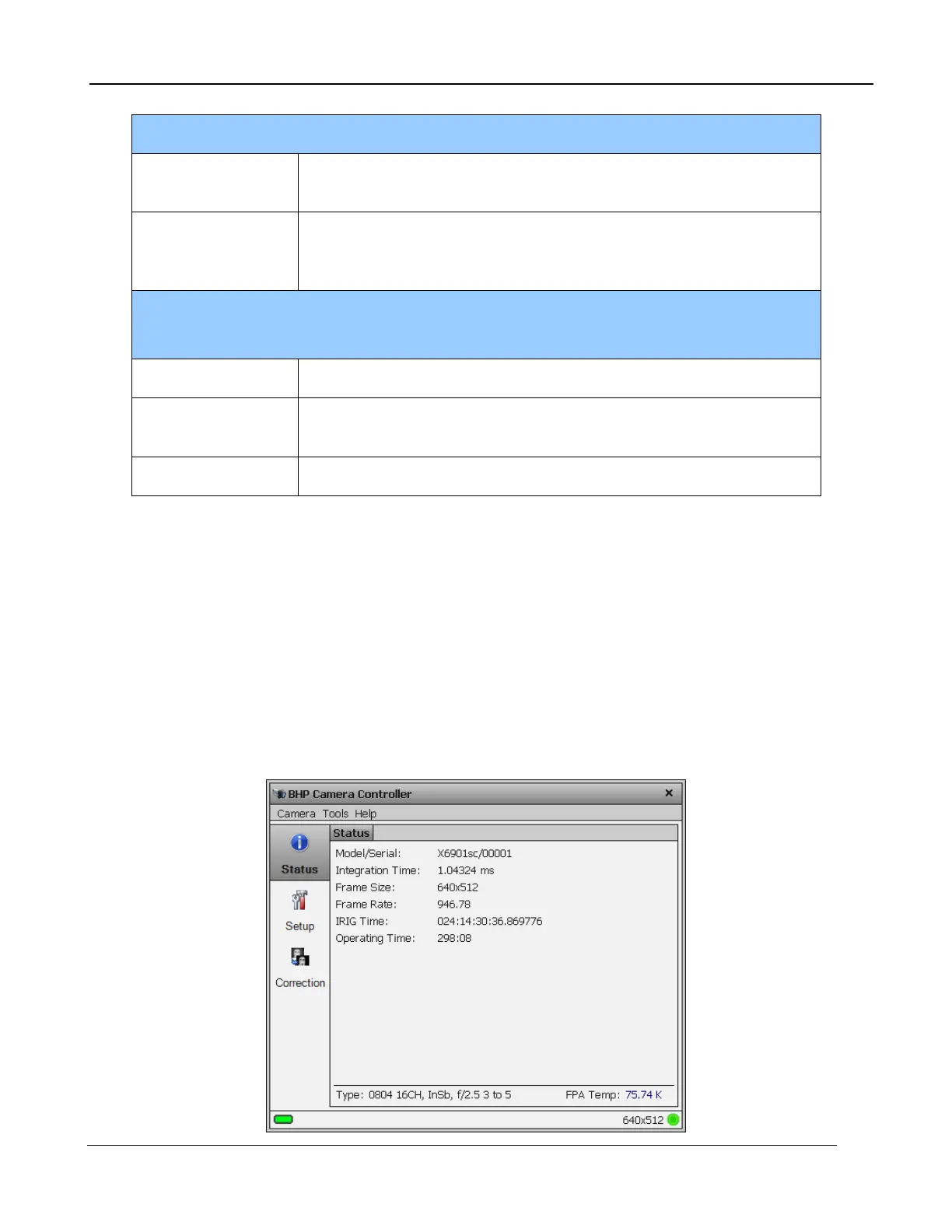

5.4.1 Status Page
The Status page is the same in both Basic and Advanced user modes. The Status Page gives general
information about the camera state including camera type, camera time, integration time, frame size,
and frame rate. This page also shows the current IRIG time and the camera operating hours. At the
bottom of the window the detailed camera type is displayed as well as the FPA operating temperature.
The indicator at the bottom left will be green when a connection to a camera is established and will
blink during communication.
