5 – X-series Camera Controller
X-series User’s Manual
56

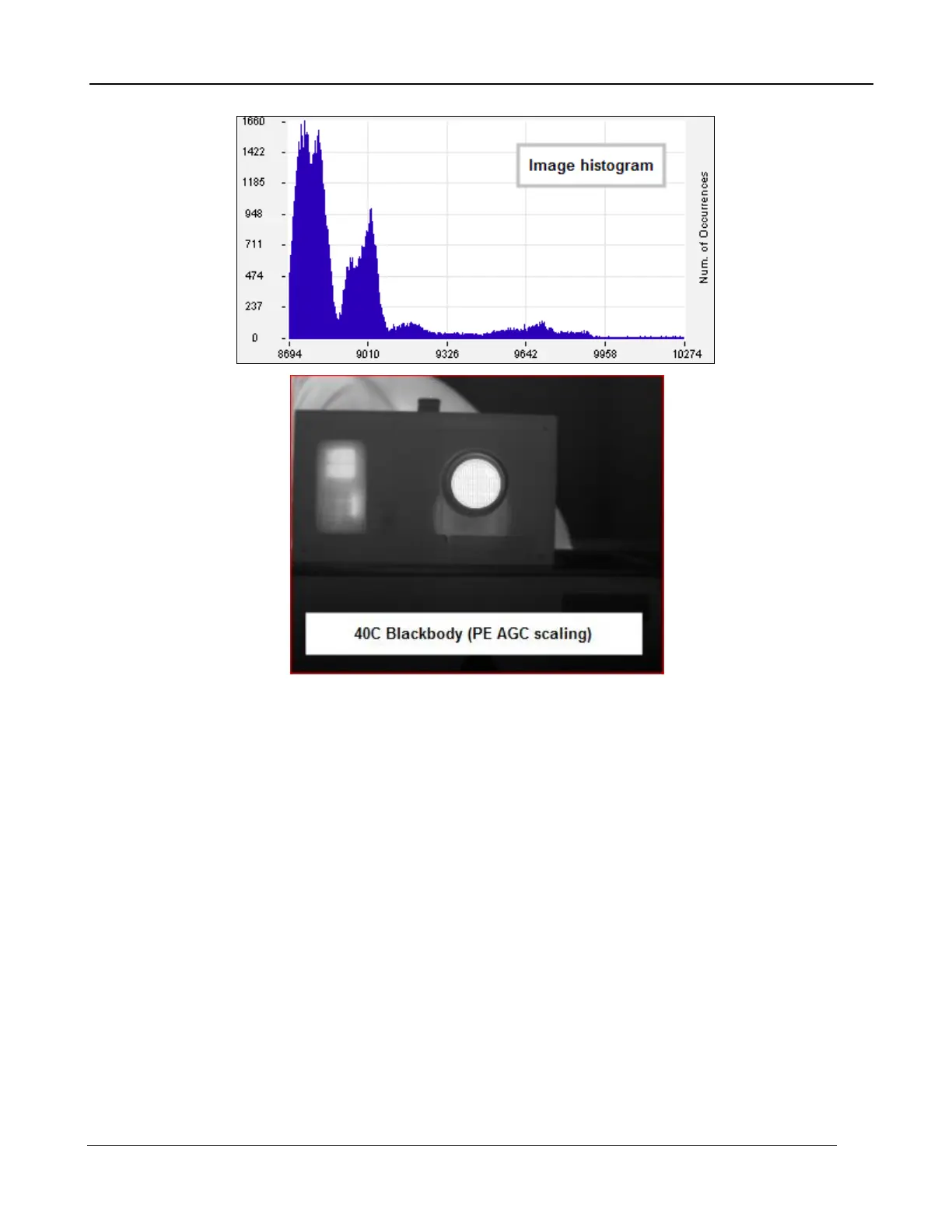

One final note about the PE algorithm: it is very aggressive. It can pull detail out of very low contrast
imagery. It can also greatly enhance some very low-level NUC and FPA artifacts and noise if the
contrast is low enough. This does not necessarily mean there is a problem with either the camera or
the NUC.
5.4.3.4 Video ROI
The Video ROI feature allows the user to define a box region and only the pixels within the box will be
used to calculate the AGC coefficients. This is particularly useful if there is part of the scene that is
much higher or lower in intensity than the target of interest. The ROI is defined by entering the size
and position directly in the parameter fields or the user can use the mouse to drag the corners of the
green box to create the desired rectangular region.
