5 – X-series Camera Controller
X-series User’s Manual
49

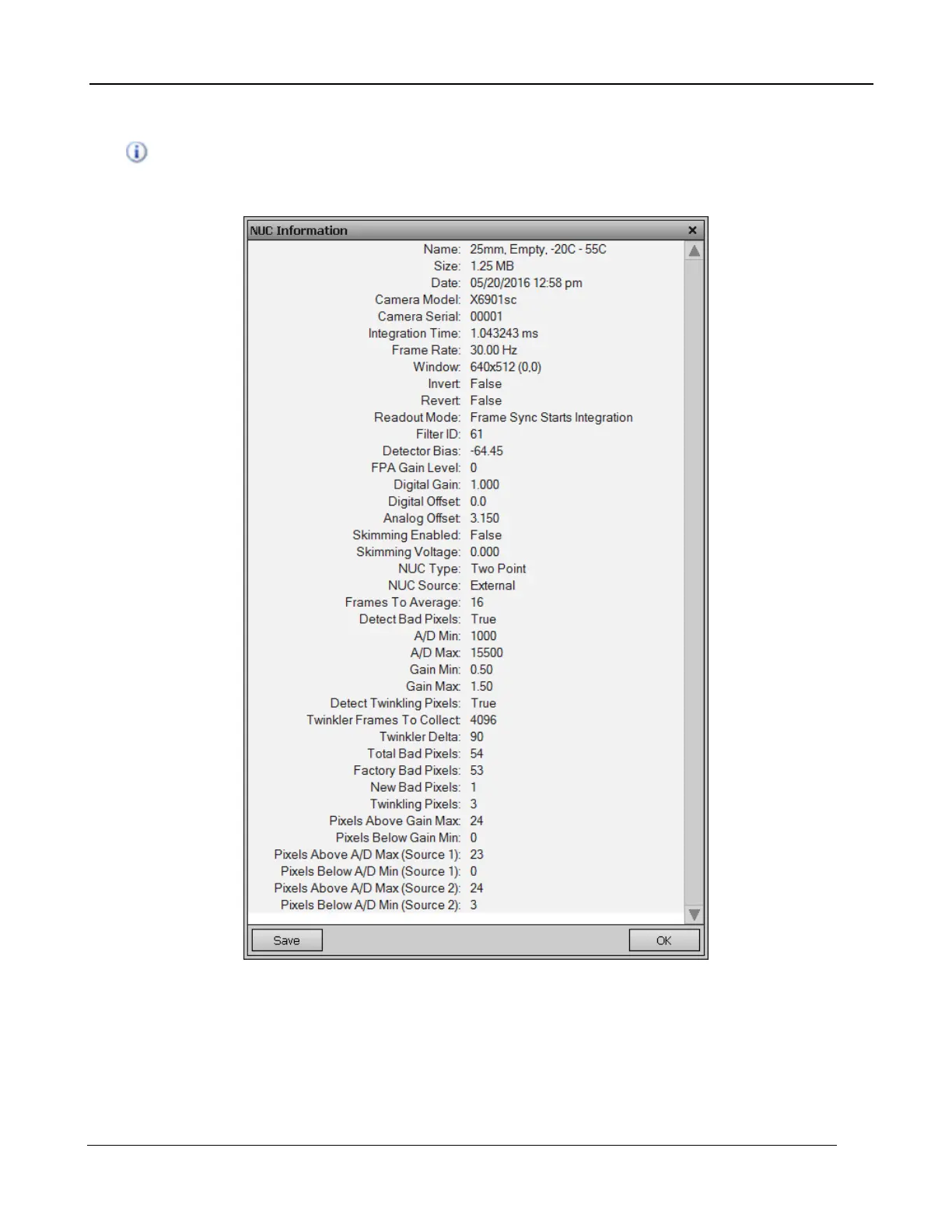

5.4.3.2.1 NUC Information
The button displays a list of camera parameters that are saved as part of the NUC as well as bad
pixel statistics. Note that there is a scroll bar that can be used to see the whole list. The Save button
allows the user to dump this list to a text file.
5.4.3.2.2 Load NUC Options
Typically, all of the camera configuration parameters are derived from the current Camera State.
When the camera is powered up, it loads the last saved camera state. The names of the NUCs are
stored as part of the state. Normally the NUC is performed with the settings that are eventually going
to be part of the state. If a NUC is loaded that has a setting that differs from the camera state, the
state will override the NUC. If the user wants the NUC setting to override the state, then “Load NUC
Options” can be set.
