FLIR X-Series User Manual

5 – X-series Camera Controller
X-series User’s Manual 40

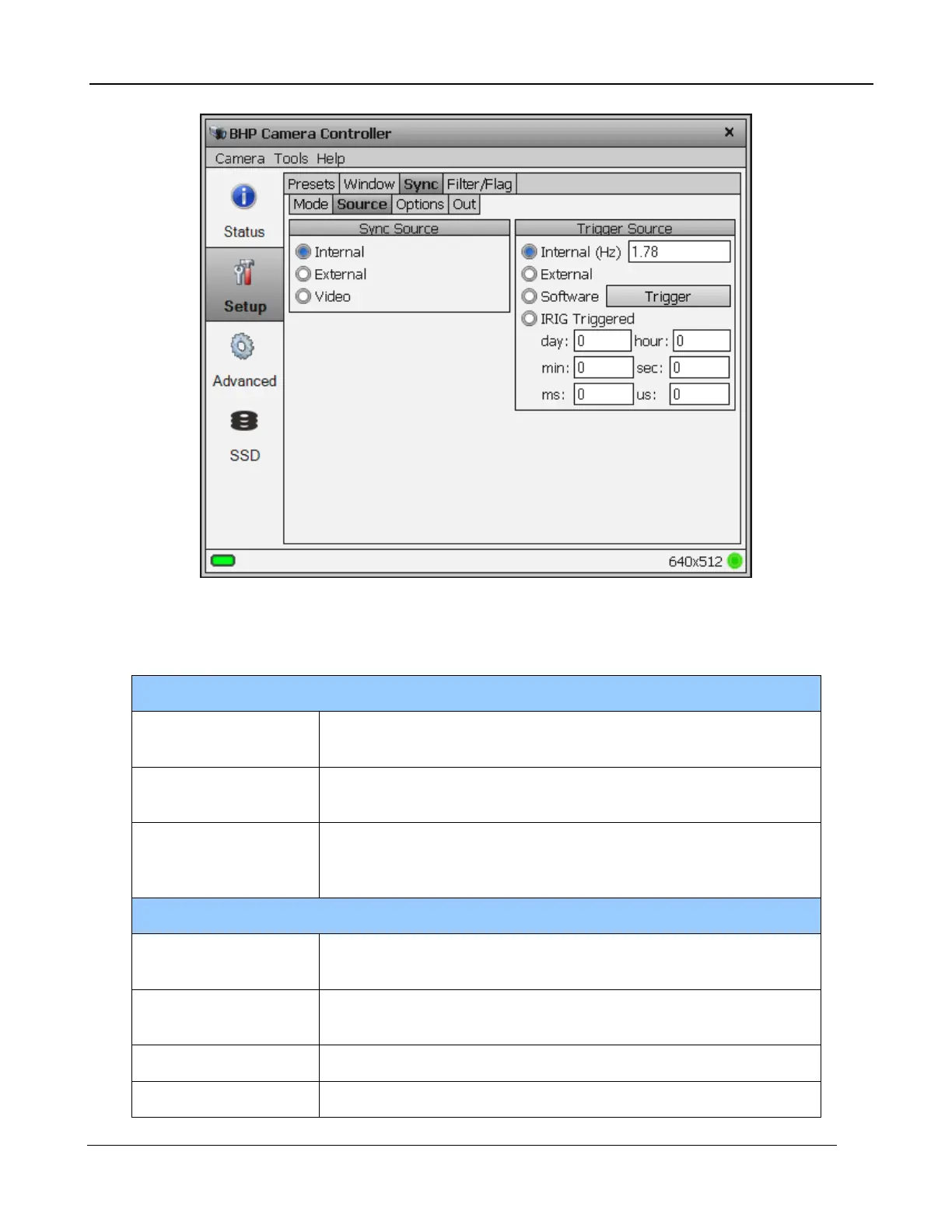

Sync Sources
Internal
The frame sync is generated internally to run at the frequency
set by the user
External
The frame sync is generated externally through the Sync In
connect on the camera rear chassis.
Video
The frame sync is generated from an external video source
connected to the Gen Lock In connector on the camera rear
chassis.
Trigger Sources
Internal
The trigger is generated internally to run at the frequency set by
the user (Hz).
External
The trigger is generated externally through the Trigger In
connector on the camera rear chassis. (3.3V TTL)
Software
The trigger is generated via a software button (Trigger button)
IRIG Triggered
Camera generates an internal trigger when the internal IRIG
