Fluke 724 - Calibrating Voltage Input

Calibrators
Calibration Adjustment
59
Calibrating Voltage Input
Connect the UUT as shown in Figure 28.
aal04.eps

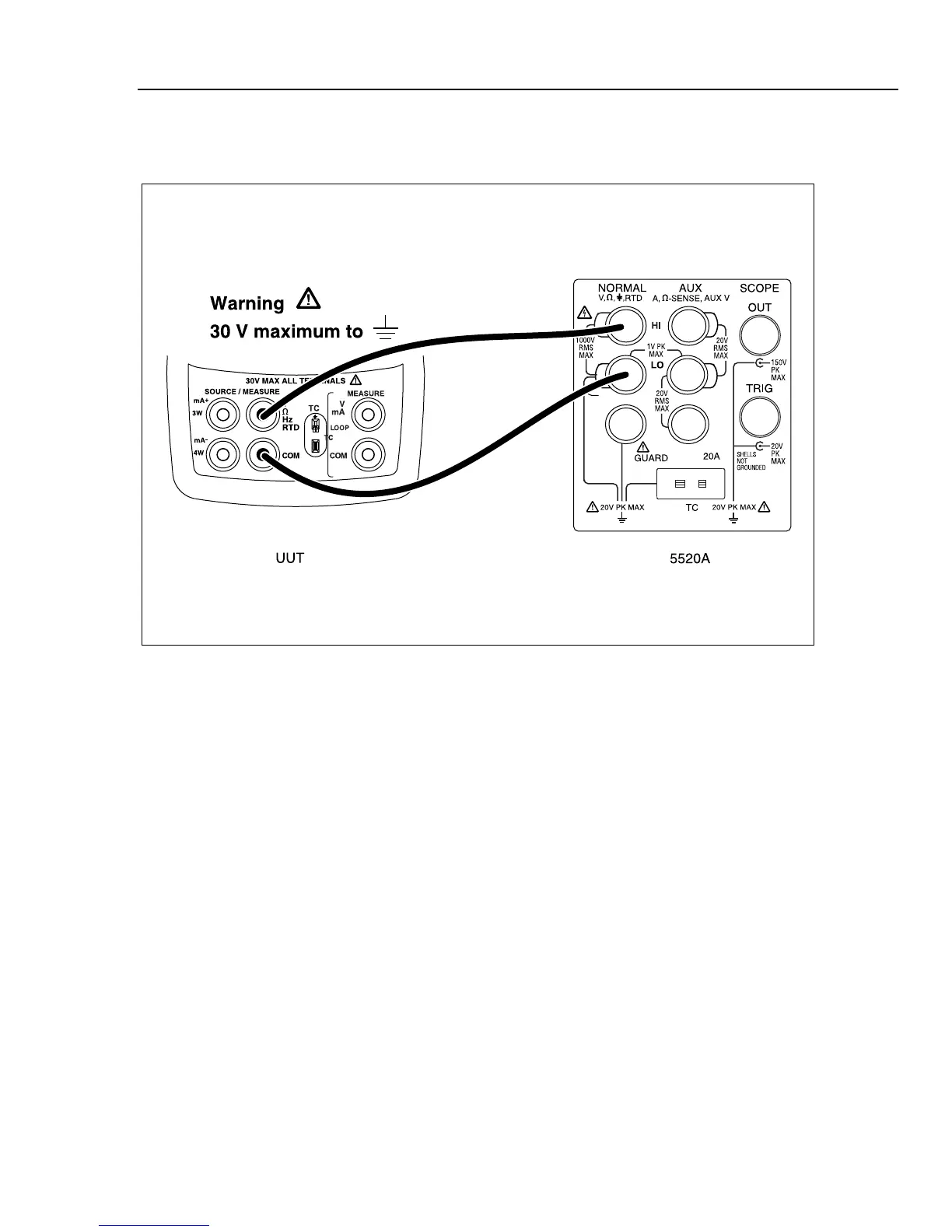

Figure 28. Voltage Input Calibration Connections
After making the proper connections, type “5” then press the Enter key on the PC
keyboard. Input directions are displayed at the bottom of the calibration menu:
Enter Selection:
Input 0 Volts, Press Enter When Stable
Input 20 Volts, Press Enter When Stable
Use the 5520A to input 0 V and then 20 V.
