724/725/726
Calibration Manual
60
Calibrating Voltage Output
Connect the UUT as shown in Figure 29.
aal08f.eps

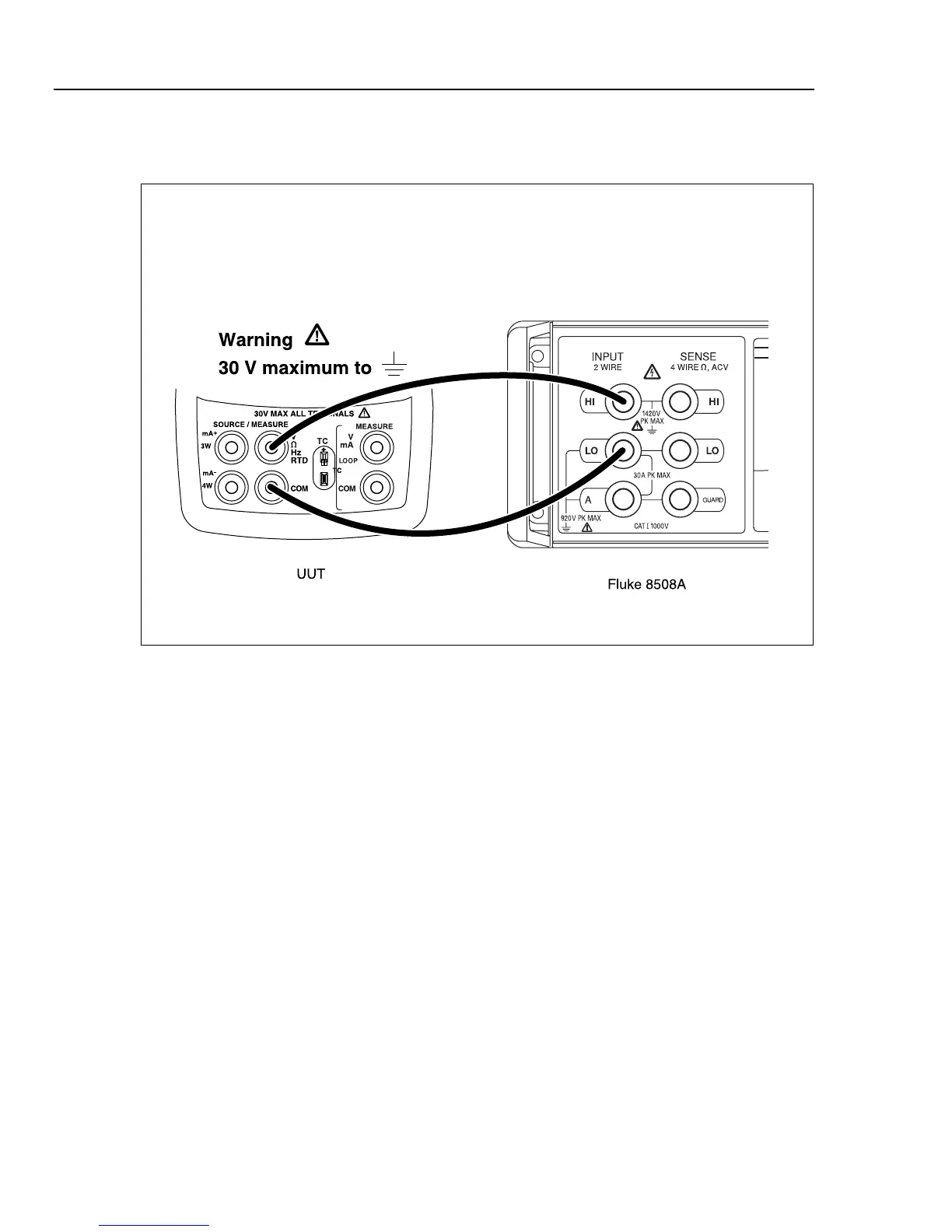

Figure 29. Voltage Output Calibration Connections
After making the proper connections, type “6” then press the Enter key on the PC
keyboard. Input directions are displayed at the bottom of the calibration menu:
Enter Selection:
First Calibration Point. Enter Volts displayed:
Second Calibration Point. Enter Volts displayed:
Use the 8508A to measure the two calibration points. Enter each of the two calibration
points as prompted.
