97
Dimension missing
Note

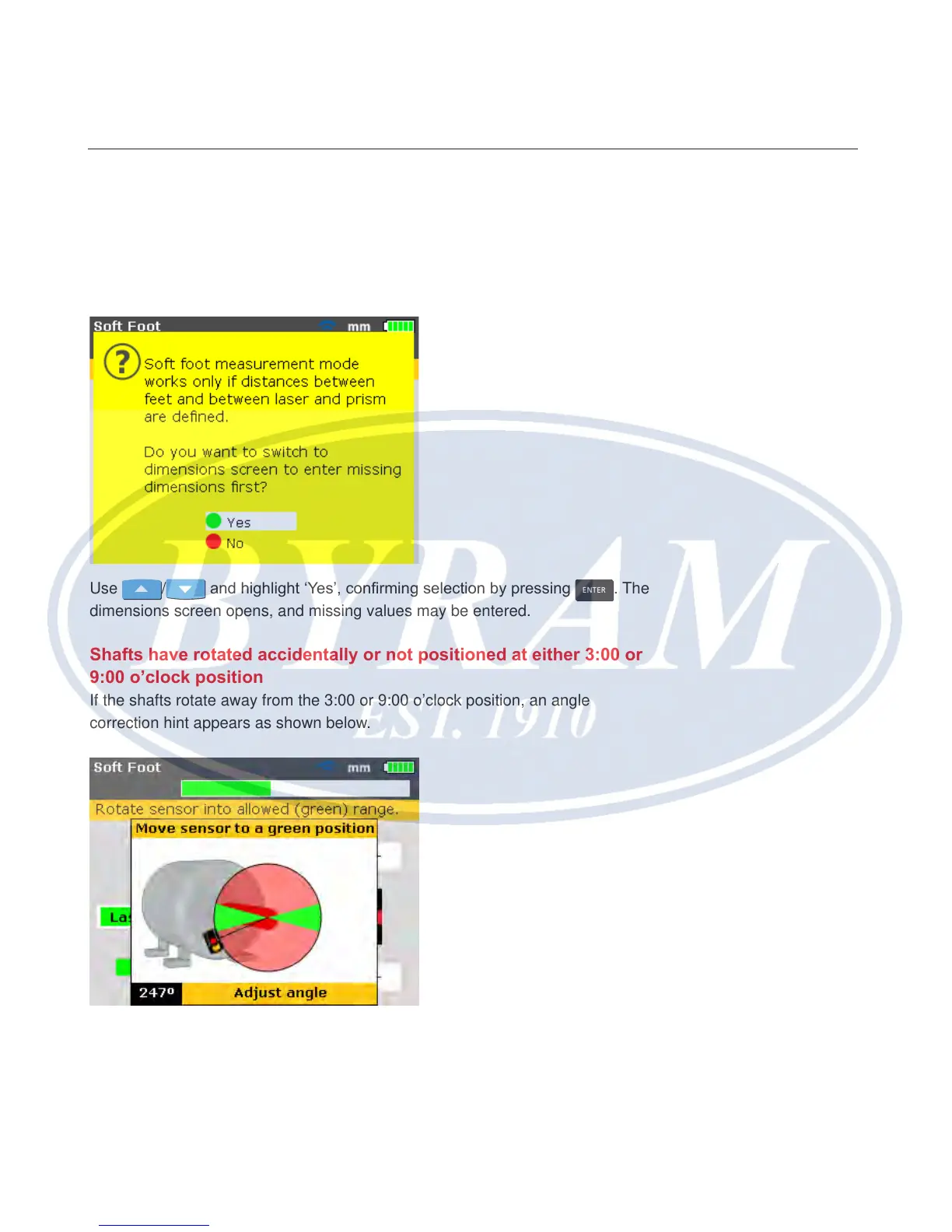

If however, either of the two signicant machine dimensions, “front foot-to-
back foot” and “sensor-to-prism”, are missing, the following hint appears.
Use
/ and highlight ‘Yes’, conrming selection by pressing
ENTER
. The
dimensions screen opens, and missing values may be entered.
Shafts have rotated accidentally or not positioned at either 3:00 or
9:00 o’clock position
If the shafts rotate away from the 3:00 or 9:00 o’clock position, an angle
correction hint appears as shown below.
Rotate the shafts back into the green sector to resume measurement.
Horizontal shaft alignment
Points to observe during soft foot measurement
