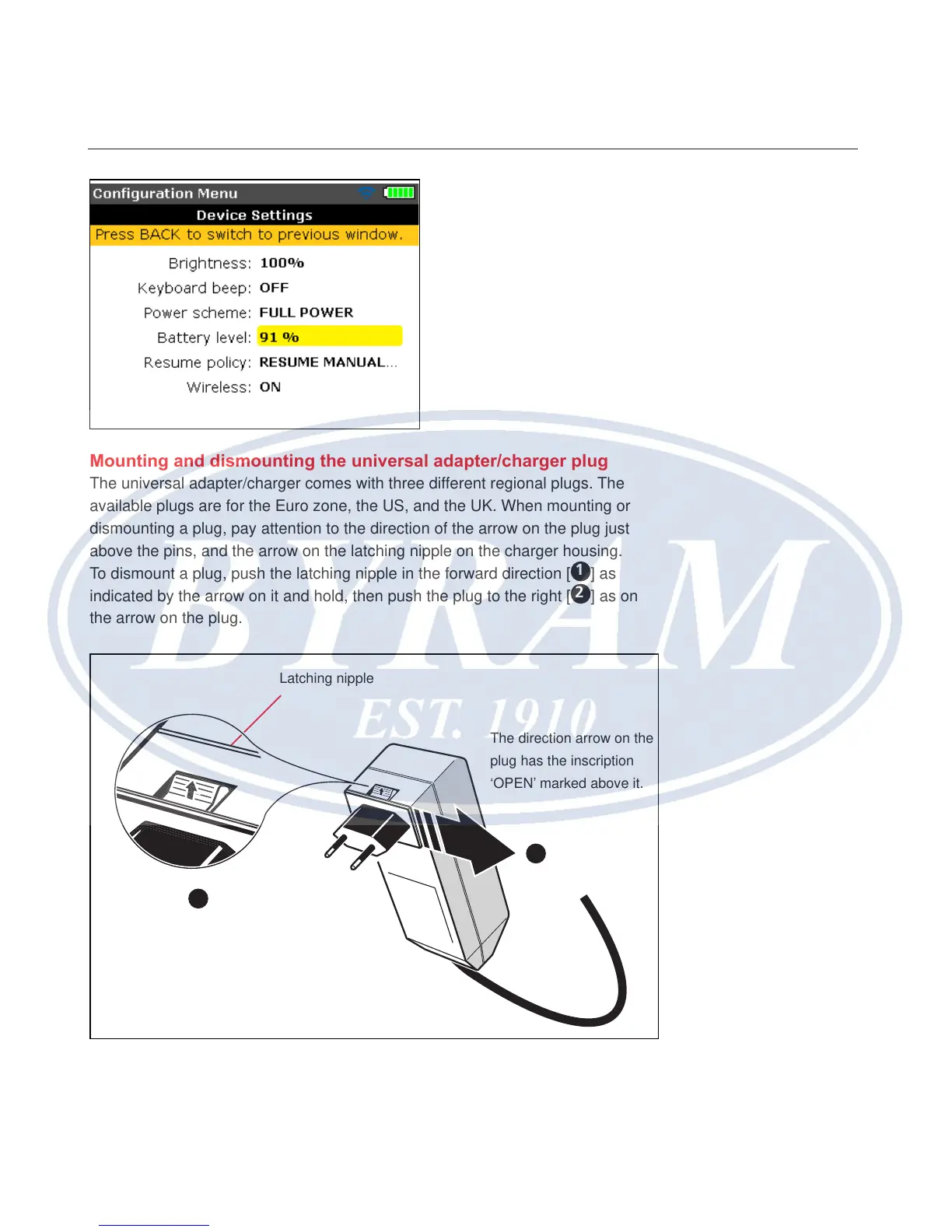

Mounting and dismounting the universal adapter/charger plug
The universal adapter/charger comes with three different regional plugs. The
available plugs are for the Euro zone, the US, and the UK. When mounting or
dismounting a plug, pay attention to the direction of the arrow on the plug just
above the pins, and the arrow on the latching nipple on the charger housing.
To dismount a plug, push the latching nipple in the forward direction [
1
] as
indicated by the arrow on it and hold, then push the plug to the right [
2
] as on
the arrow on the plug.
Figure 4-3. Dismounting the charger plug
The direction arrow on the
plug has the inscription
‘OPEN’ marked above it.
1
2
Latching nipple
Overview
Mounting/Dismounting universal adapter/charger plug
