830
Users Manual
134

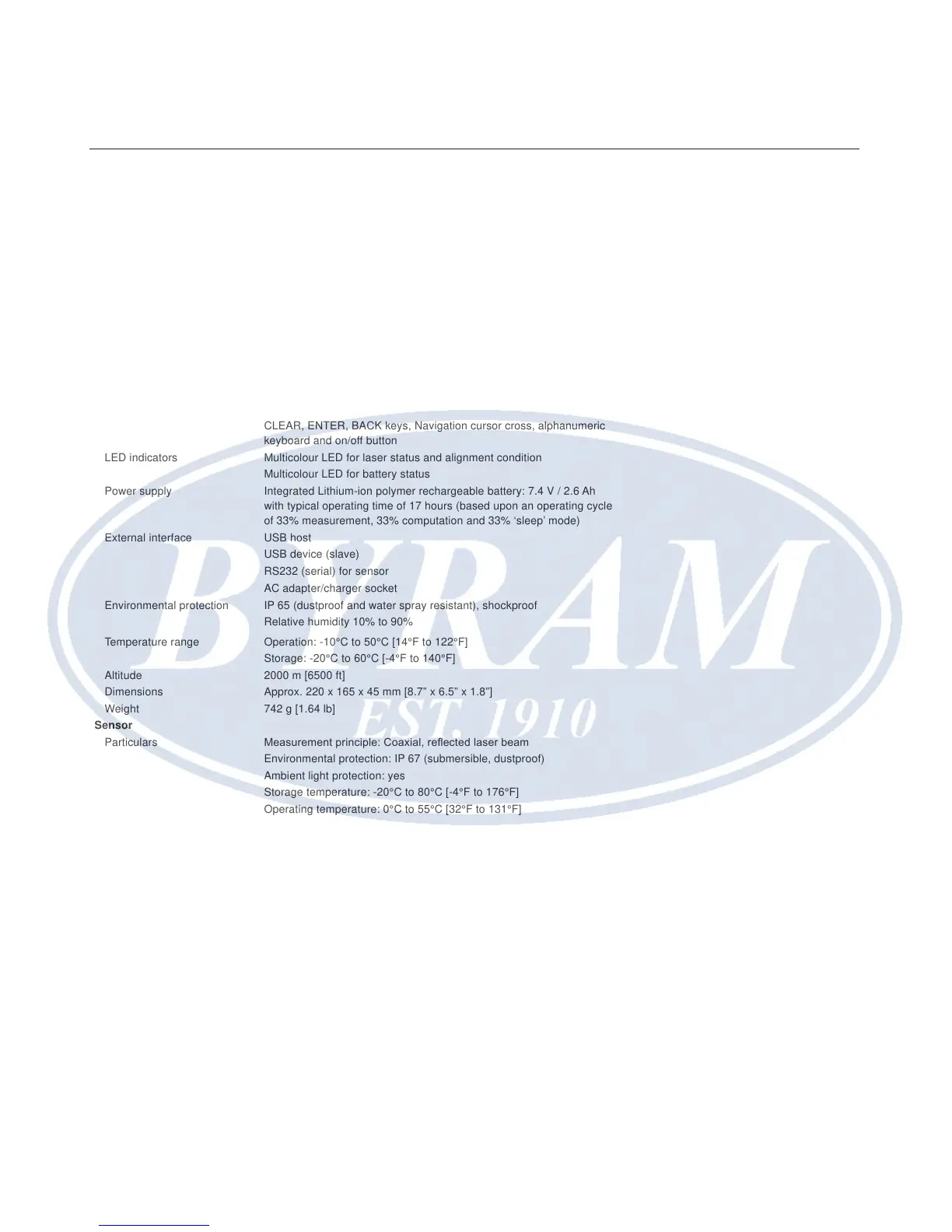

830 Laser Alignment Tool technical data
Product
CPU Intel XScale PXA270 running at 312 MHz
Memory 64 MB RAM, 32 MB Flash
Display Type: TFT, transmissive (sunlight-readable), 65 535 colours, backlit
LED
Integrated light sensor for automated adjustment of the brightness
to the display according to the lighting conditions hence extending
battery life
Resolution: 320 x 240 Pixel
Dimensions: 3.5 inch [8.9 cm] diagonal
Keyboard elements: SETUP, MEASURE, DIAGNOSE, MENU,
CLEAR, ENTER, BACK keys, Navigation cursor cross, alphanumeric
keyboard and on/off button
LED indicators Multicolour LED for laser status and alignment condition
Multicolour LED for battery status
Power supply Integrated Lithium-ion polymer rechargeable battery: 7.4 V / 2.6 Ah
with typical operating time of 17 hours (based upon an operating cycle
of 33% measurement, 33% computation and 33% ‘sleep’ mode)
External interface USB host
USB device (slave)
RS232 (serial) for sensor
AC adapter/charger socket
Environmental protection IP 65 (dustproof and water spray resistant), shockproof
Relative humidity 10% to 90%
Temperature range Operation: -10°C to 50°C [14°F to 122°F]
Storage: -20°C to 60°C [-4°F to 140°F]
Altitude 2000 m [6500 ft]
Dimensions Approx. 220 x 165 x 45 mm [8.7” x 6.5” x 1.8”]
Weight 742 g [1.64 lb]
Sensor
Particulars Measurement principle: Coaxial, reected laser beam
Environmental protection: IP 67 (submersible, dustproof)
Ambient light protection: yes
Storage temperature: -20°C to 80°C [-4°F to 176°F]
Operating temperature: 0°C to 55°C [32°F to 131°F]
Dimensions: approx. 107 x 70 x 49 mm [4 1/4” x 2 3/4” x 2”]
Weight: approx. 177 g [6 1/2 oz.]
Laser Type: AlGaInP semiconductor laser
Beam divergence: < 0.35 mrad
Wavelength (typical): 670 nm (red, visible)
Beam power: < 1 mW
Detector Measurement area: unlimited, dynamically extendible
Resolution: 1 µm
Accuracy (avg): > 98%
Inclinometer Measurement range: 0° to 360°
Resolution: <1°
