Mini compact chain-type bracket
Compact and lightweight, this bracket is designed to provide extremely rigid
support for the measurement components with a minimum of mounting time and
effort. The chain-type bracket ts onto shafts and couplings ranging from 15 to
200 mm (1/2” to 8”) in diameter. [Note that the brackets themselves cover the
full range of diameters; it is only the chain lengths that limit.] Chains of varying
lengths are also available. Mounting instructions are given in the section ‘Mount
the brackets’ on page 48.

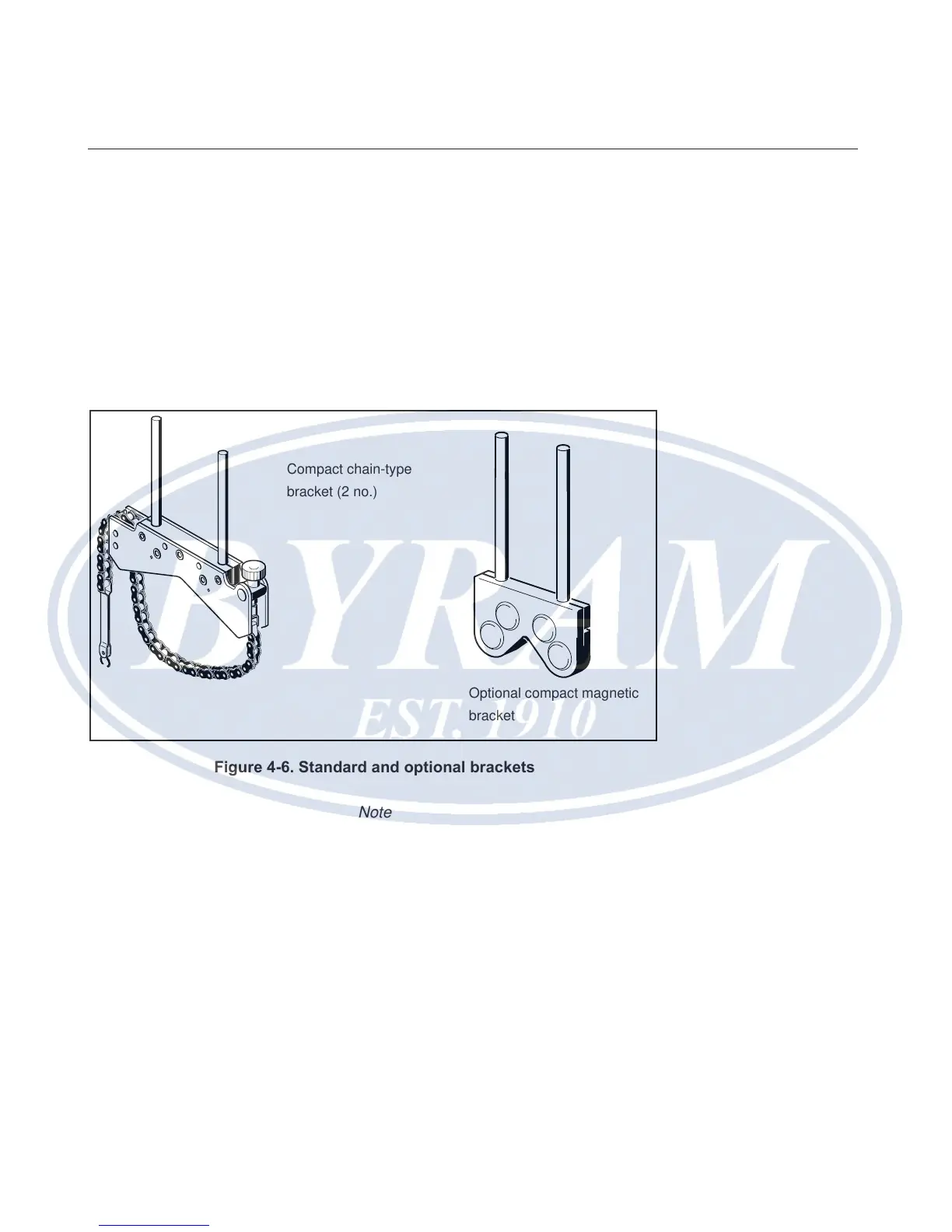

Figure 4-6. Standard and optional brackets
Note
Package contents are shown in the “Package” section starting on page 5.
Compact chain-type
bracket (2 no.)
Optional compact magnetic
bracket
Overview
Mini compact chain-type bracket
