830
Users Manual
72
If the coupling diagnosis show that misalignment exceeds the tolerance, then the
machine must be realigned by shimming vertically and repositioning the machine
horizontally.
Tolerances
The color-coded tolerance bars on the results screen indicate the degree to
which the measured alignment condition meets specied tolerances. The marking
on the tolerance bar shows the measured alignment condition. This ranges from
excellent tolerance to worse tolerance.

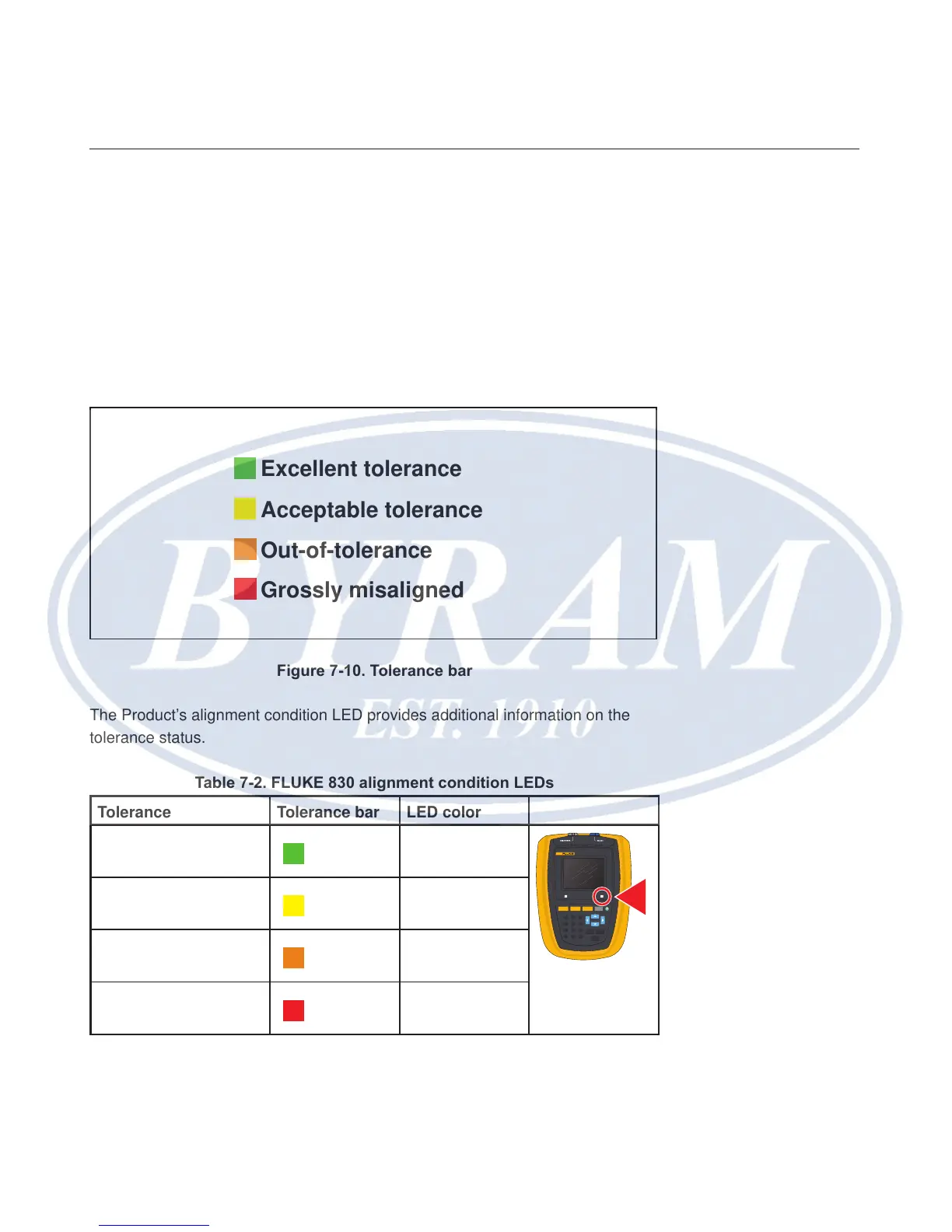

Figure 7-10. Tolerance bar
The Product’s alignment condition LED provides additional information on the
tolerance status.
Table 7-2. FLUKE 830 alignment condition LEDs
Tolerance Tolerance bar LED color
Excellent tolerance
Green
830
LASER ALIGNMENT TOOL
SETUP MEASURE
DIAGNOSE MENU
CLEARENTER
BACK
1

2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
+
-
0
space
.
/
.
Acceptable tolerance Yellow
Out-of-tolerance
Orange
Grossly misaligned
Red
Excellent tolerance
Acceptable tolerance
Out-of-tolerance
Grossly misaligned
