For circular housings, measure the circumference of the coupling housing and
divide by eight. Use this distance to make eight evenly-spaced marks on the
housing beginning at your chosen start point. Number the points clockwise
looking down onto the shaft with 0 as the rst, followed by 1:30, 3:00, 4:30, 6:00,
7:30, 9:00 and 10:30. (Refer to gure 9-3.)

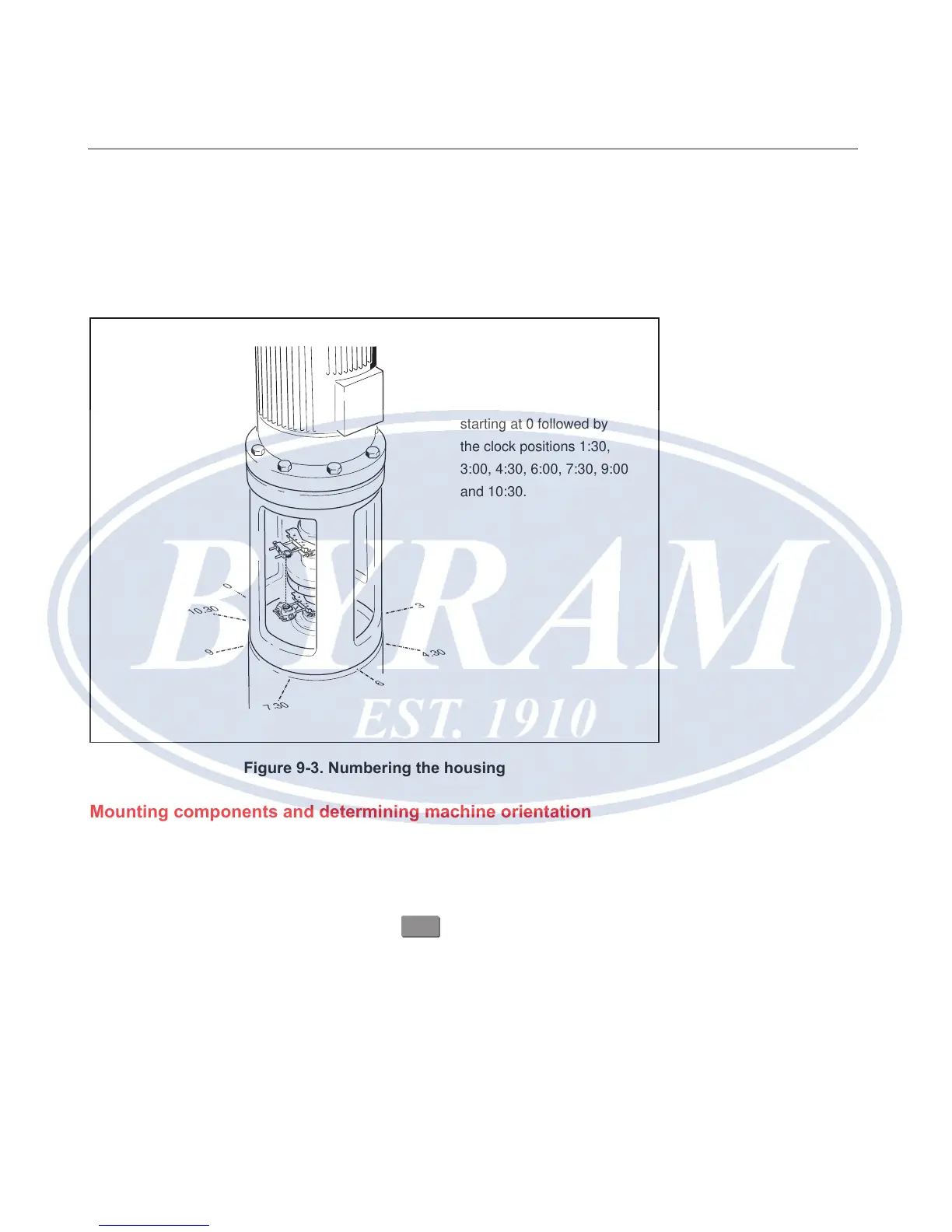

Figure 9-3. Numbering the housing
Mounting components and determining machine orientation
1. Mount the wireless module together with the sensor on one side of the
coupling, and prism on the opposite side of the coupling, ensuring that they
are aligned exactly with the 0 or reference mark.
2. Switch the Product on.
3. When the “Setup” screen appears, press
MENU
to access the “Main menu”
screen. Use the navigation keys and highlight the ‘Right machine’ icon.
9
3
0
6
The circular housing is
numbered clockwise
looking down the shaft,
starting at 0 followed by
the clock positions 1:30,
3:00, 4:30, 6:00, 7:30, 9:00
and 10:30.
Vertical flanged machines
Mounting components
