Fluke 830 - Measurement and Diagnosis

107
9. Vertical anged machines
Typical conguration

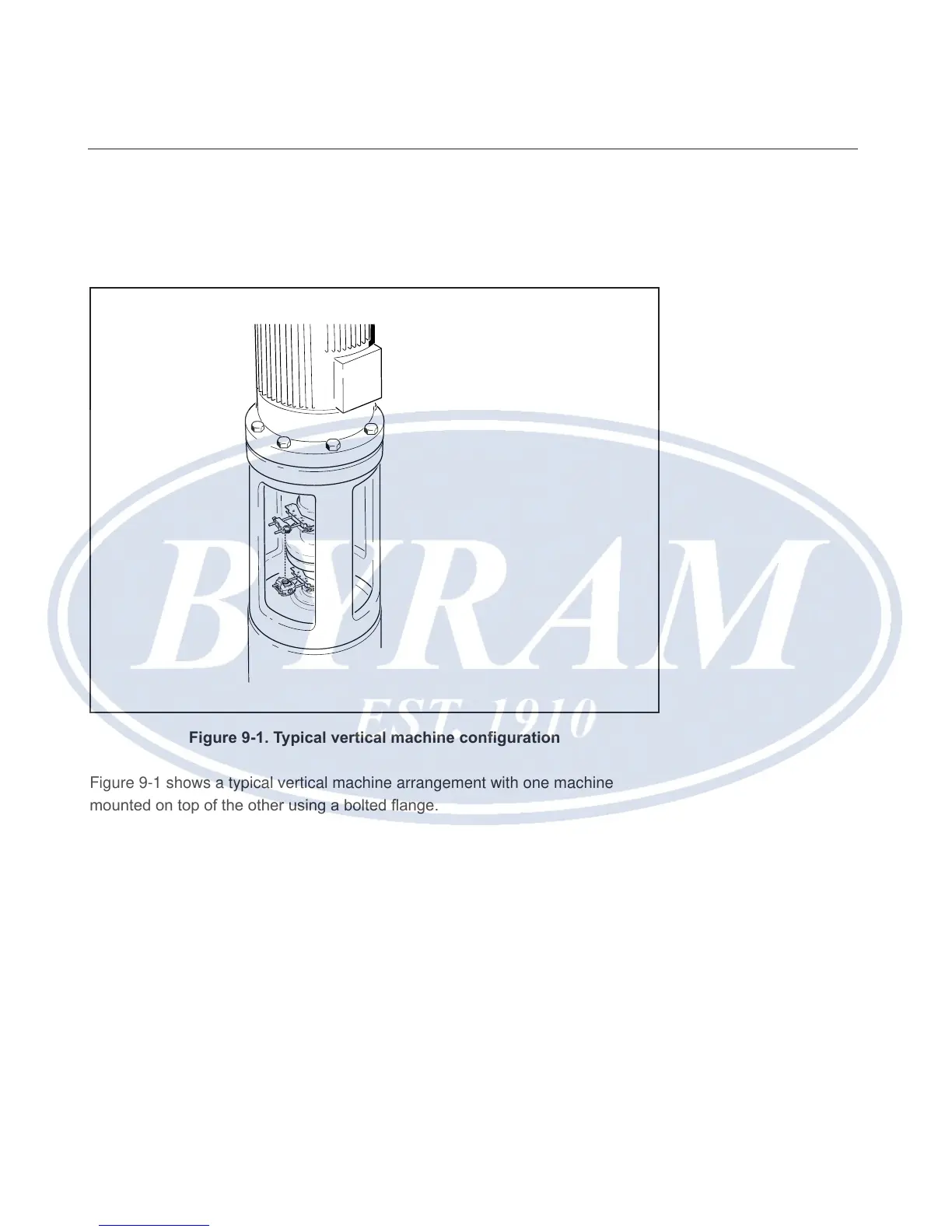

Figure 9-1. Typical vertical machine conguration
Figure 9-1 shows a typical vertical machine arrangement with one machine
mounted on top of the other using a bolted ange.
In ange-mounted machines, alignment corrections are made directly at the
ange.
Angularity is corrected by inserting or removing shims between the anges.
The Product calculates the shimming thickness for each ange bolt. Offset is
corrected by positioning the ange laterally.
Typical vertical machine
arrangement comprised
of one machine mounted
on top of the other with a
bolted ange.
Vertical flanged machines
Typical configuration
