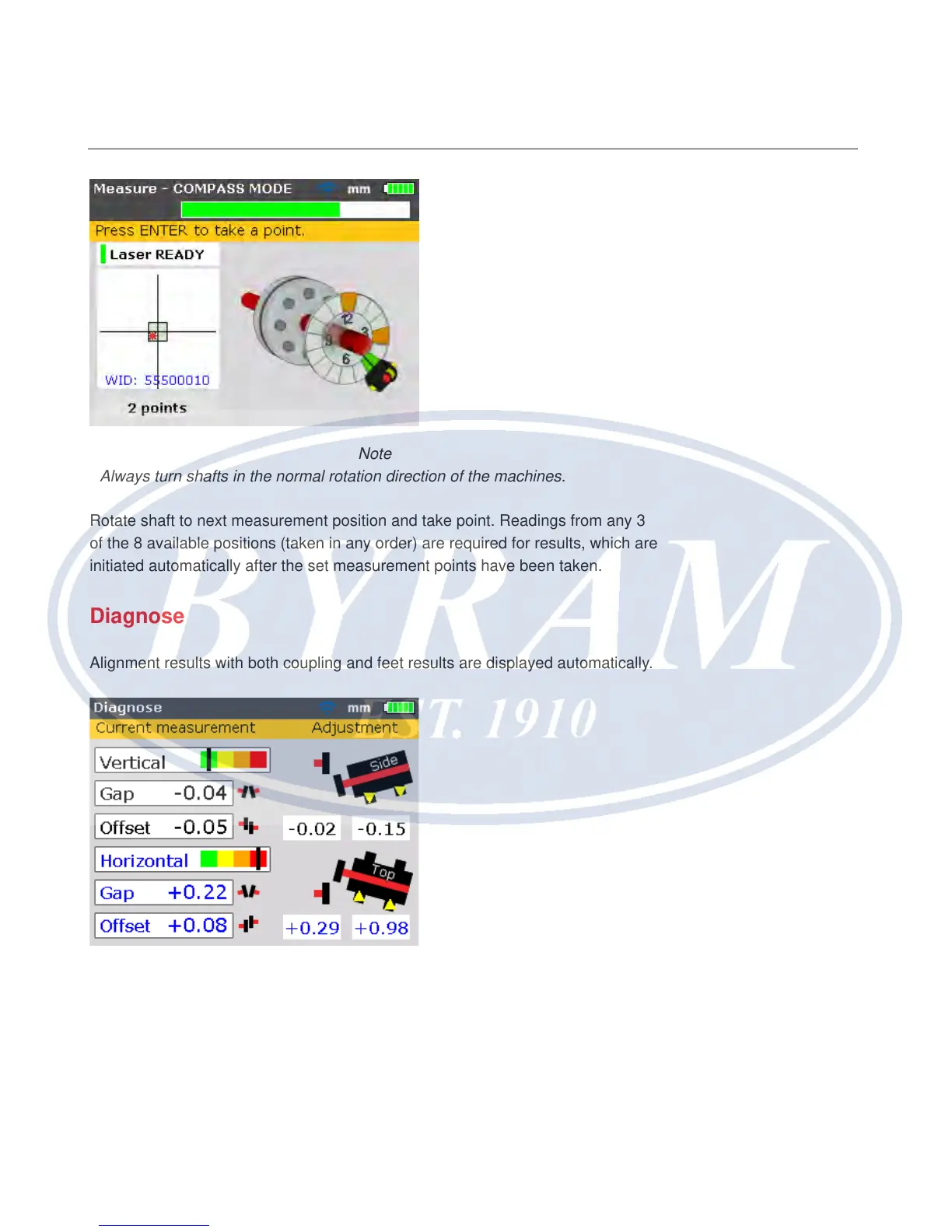

Note
Always turn shafts in the normal rotation direction of the machines.
Rotate shaft to next measurement position and take point. Readings from any 3
of the 8 available positions (taken in any order) are required for results, which are
initiated automatically after the set measurement points have been taken.
Diagnose
Alignment results with both coupling and feet results are displayed automatically.
Coupling and feet results are displayed in both vertical and horizontal planes.
Coupling results are given in the form of gap and offset. With stationary machine
on the viewer’s left, gap is positive when open at the top or side away from
viewer. Offset is positive when the right coupling half is higher or further away
from viewer.
