830
Users Manual
46
The foot results show the foot correction values relative to the stationary
machine. In foot results positive values indicate that right machine is downwards
(therefore add shims for correction) or towards viewer (therefore move away
from viewer for correction). Negative values indicate that movable machine
is upwards (therefore remove shims for correction) or away from the viewer
(therefore move towards viewer for correction). The alignment tolerance status
can be displayed using the tolerances feature.
Note
Tolerance bar is 4-level scale on screen of Product.

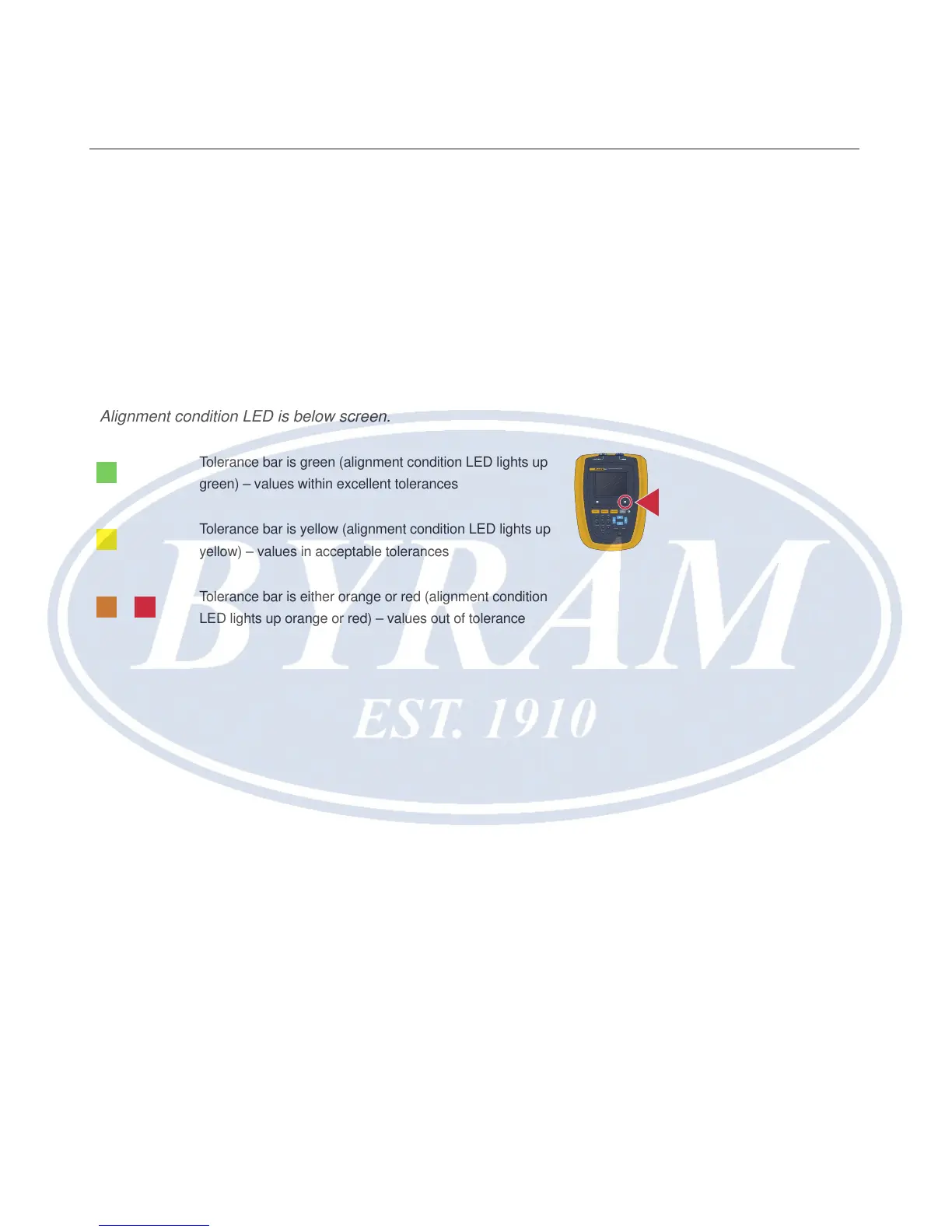

Alignment condition LED is below screen.
Tolerance bar is green (alignment condition LED lights up
green) – values within excellent tolerances
830
LASER ALIGNMENT TOOL
SETUP MEASURE
DIAGNOSE MENU
CLEARENTER
BACK
1
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
WXYZ
+
-
0
space
.
/
.
Tolerance bar is yellow (alignment condition LED lights up
yellow) – values in acceptable tolerances
Tolerance bar is either orange or red (alignment condition
LED lights up orange or red) – values out of tolerance
