NOTE!
Ensure that the length of the parting agent hose between the device and the
parting agent nebuliser does not exceed 1 m (40 in.).
1

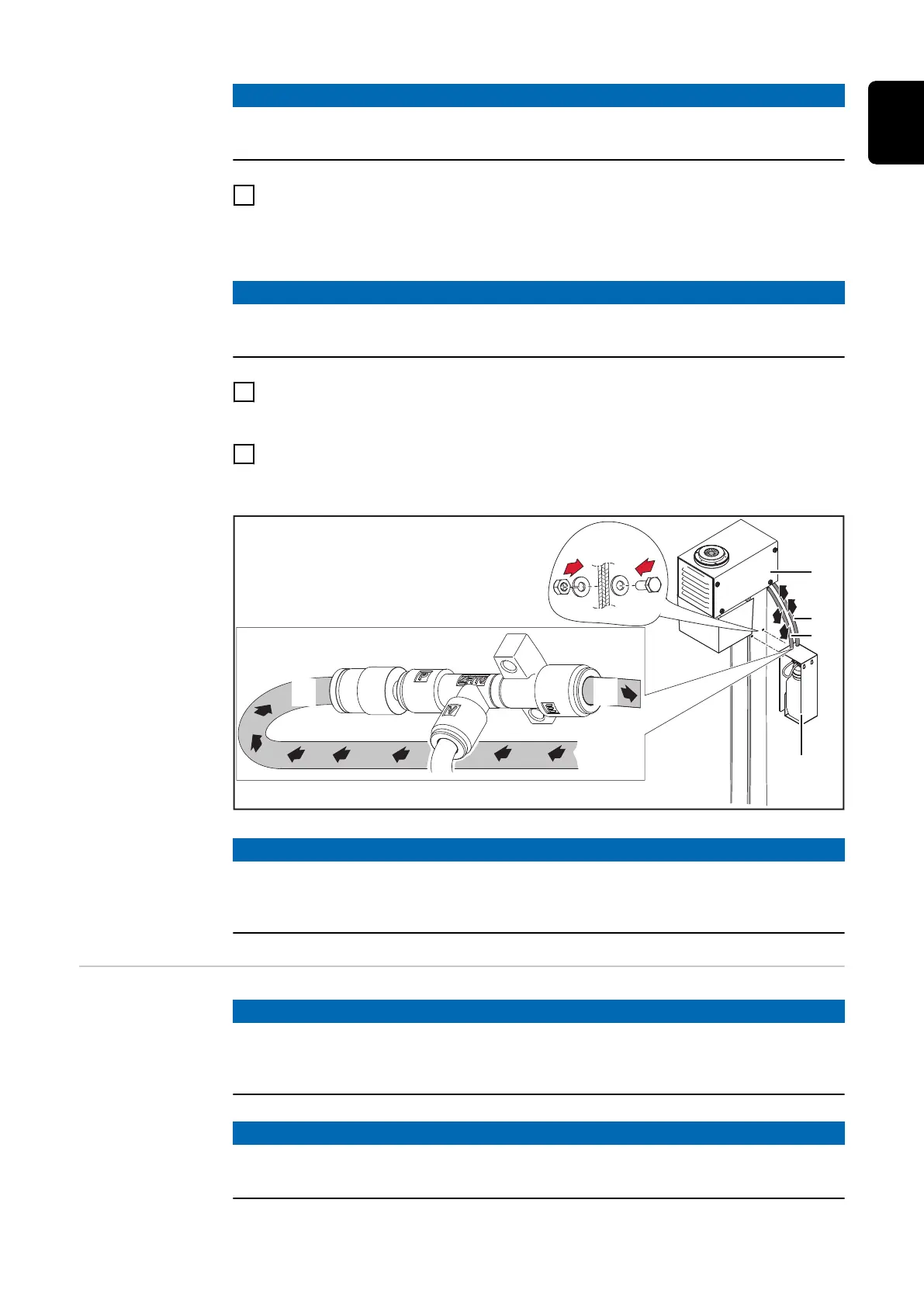

Screw the parting agent nebuliser (1) to the cleaning unit (2) installation
stand using 2 screws, 2 washers, 2 lock washers and 2 nuts as shown. The in-
staller is responsible for selecting the right screws, washers, lock washers and
nuts
NOTE!
Use the parting agent hoses supplied with the parting agent nebuliser to con-
nect the nebuliser to the cleaning unit.
2
Connect the parting agent hose (3) to the parting agent nebuliser connection
on the cleaning unit
-
Compressed air supply from the cleaning unit
3
Connect the parting agent hose (4) to the spray device connection on the
cleaning unit
-
Compressed air/parting agent mixture supply to the cleaning unit
NOTE!
The parting agent spray time must be set on the robot control.
▶
A spray time of approximately 0.7 seconds is recommended. This may vary
depending on the size of the gas nozzle.
Cleaning unit P.:
Installing part-
ing agent
nebuliser V
NOTE!
If the parting agent nebuliser is positioned too high, there is a risk of parting
agent leaking out around the spray holes in the cleaning opening. Position the
parting agent nebuliser below the upper edge of the housing.
NOTE!
Ensure that the length of the parting agent hose between the device and the
parting agent nebuliser does not exceed 1 m (40 in.).
55
EN
