Fronius Symo Service Manual

132

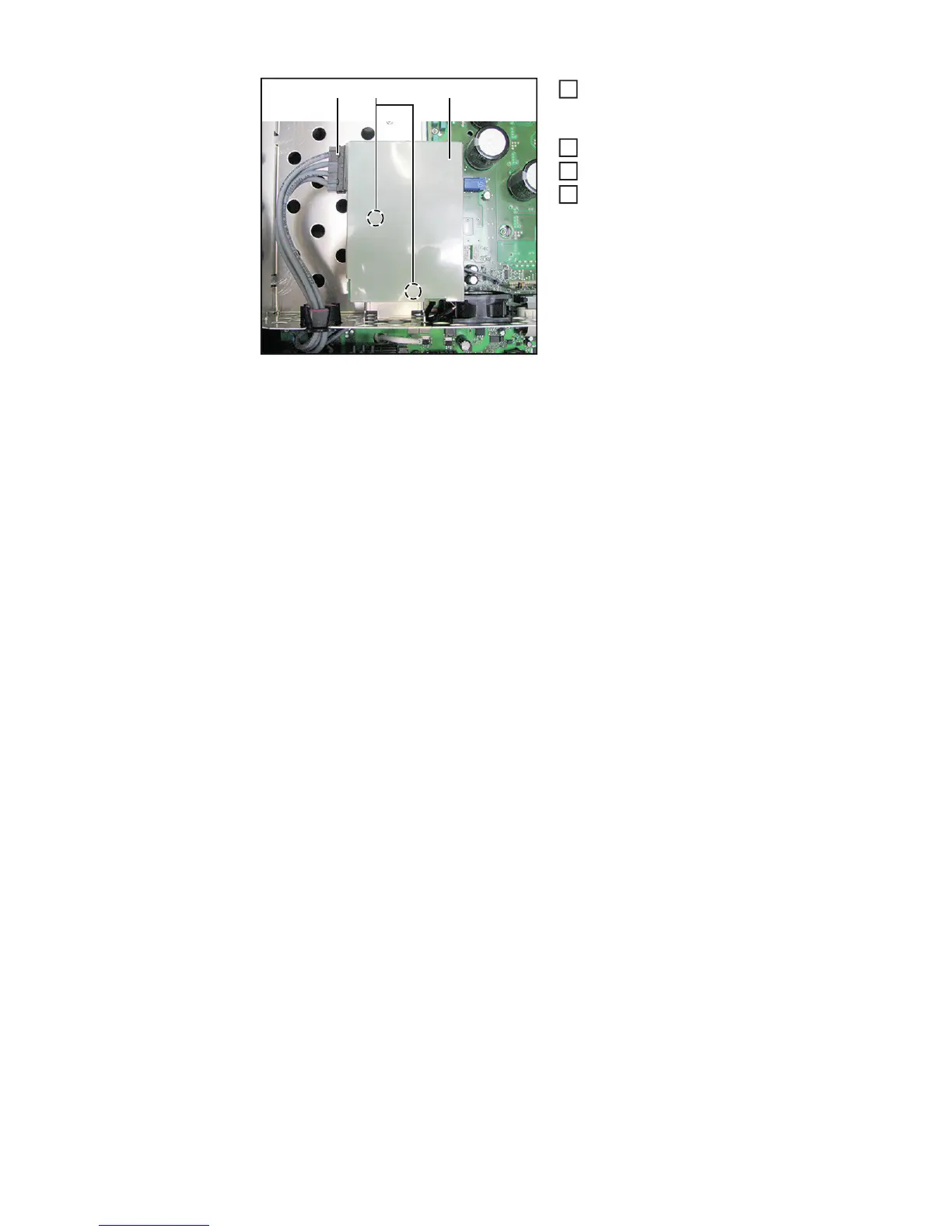

Mount the new overvoltage PC board
with two 4x9 TX20 screws (3)
[2 Nm]
Establish a connection to the OVP (5)
Insert insulating sheet (1)
Close the inverter and place it into the
wall bracket (see “Opening and closing
the device“ section)
(1)(3)(2)
6
7
8
9

Fronius Symo Specifications

General

THD	< 3 %
Number of MPP Trackers	2
Protection Class	IP65
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Power Range	3.0 kW - 20.0 kW
AC Output Voltage	230 V
Communication	Ethernet
Warranty	5 years
Model	Symo
