Fronius Symo Service Manual

147
EN

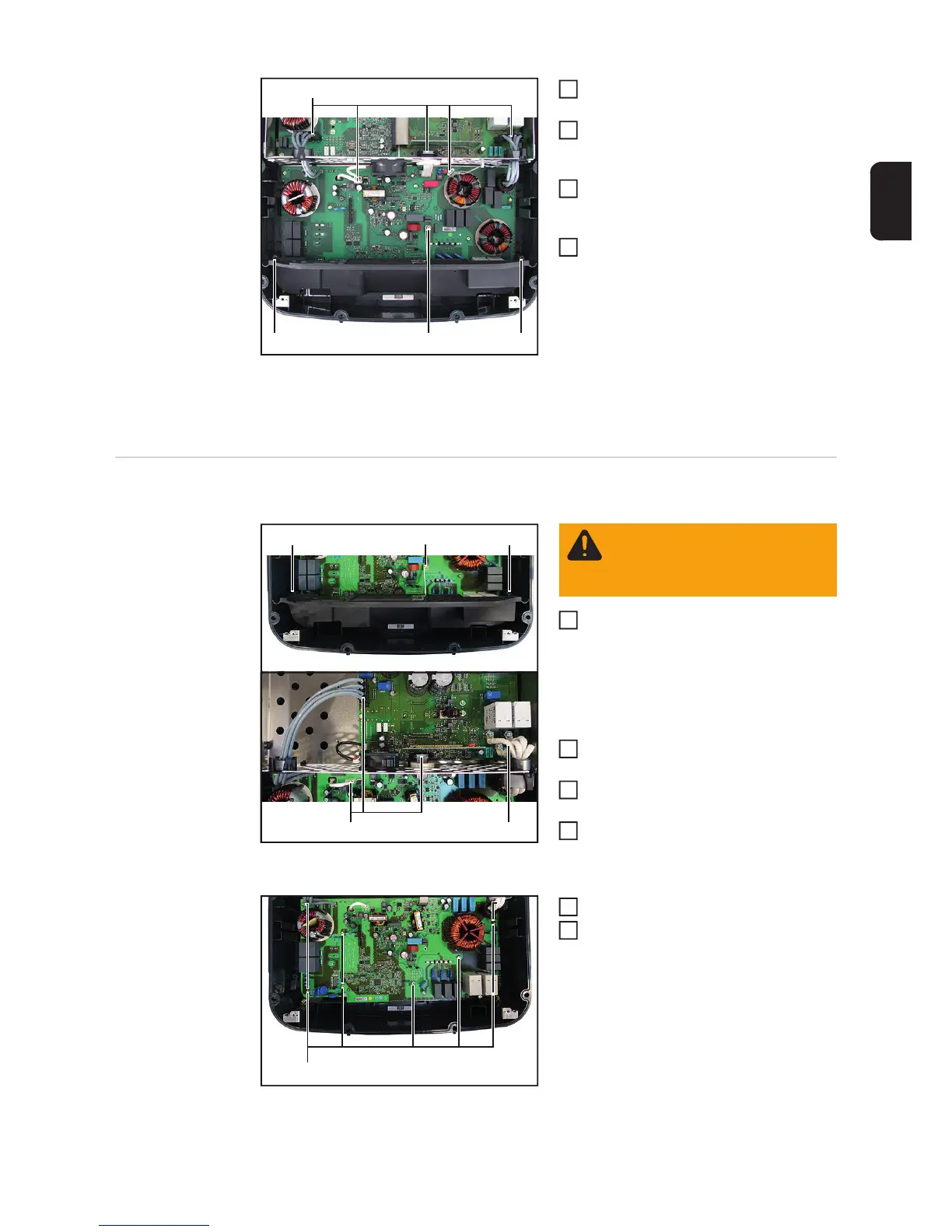

Connect all cables and plug connec-
tions (3) to the SymoFIL
Fit the Datcom insert with two 5x10
TX25 screws (2)
[1,2 Nm]
Fit the ground connection with a 4x9
TX20 screw (1)
[2 Nm]
Insert the Recerbo, close the inverter
and place it in the wall bracket (see
"Replacing the display PC board -
Recerbo", "Opening and closing the
device" and necessary „Replacing the
Overvoltage PC board“ sections)
Switch on the inverter and then carry out a
fan test via the display (see operating inst-
ructions)
Replacing the fil-
ter PC board -
EcoFIL
Removing the EcoFIL:
Take the inverter out of the wall bra-
cket and remove the Recerbo without
detaching the device data unit (see
"Opening and closing the device",
"Replacing the display PC board -
Recerbo" and necessary „Replacing
the Overvoltage PC board“ sections)
Undo the 4x9 TX20 screw (1) on the
ground connection
Undo the two 5x10 TX25 screws (2)
and remove the Datcom insert
Disconnect all cables and plug connec-
tions (3-4) from the EcoFIL and thread
them out
Undo the nine 4x9 TX20 screws (5)
Thread out the EcoFIL and remove it
(2)(1)(2)
(3)
3
4
5
6
(2)(2) (1)
(3) (4)
WARNING! Observe the safety
rules (see the beginning of the
"Safety" section)
1
2
3
4
(5)
5
6

Fronius Symo Specifications

General

THD	< 3 %
Number of MPP Trackers	2
Protection Class	IP65
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Power Range	3.0 kW - 20.0 kW
AC Output Voltage	230 V
Communication	Ethernet
Warranty	5 years
