Fronius Symo Service Manual

149
EN

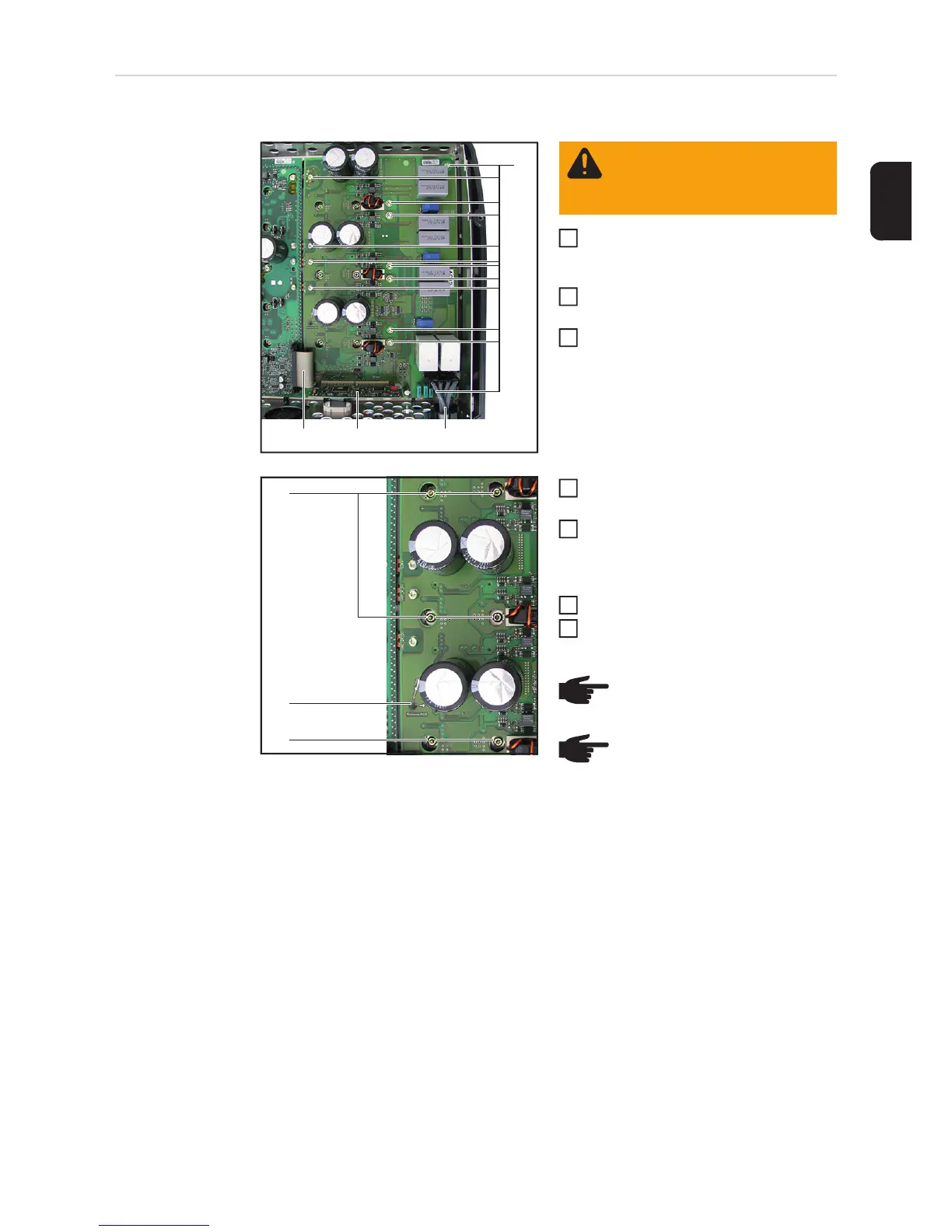

Replacing the
power board -
SymoPS AC
Removing the SymoPS AC:
Take the inverter out of the wall bra-
cket and open it (see "Opening and
closing the device")
Disconnect all cables and plug connec-
tions (1-2) and thread them out
Undo the twelve 4x9 TX20 screws (3)
Undo the six 4x9 TX20 screws (4) on
the solar modules
Insert the screwdriver into the "Remo-
ve Print" hole (5) and detach the Sym-
oPS AC from the heat sink in the
direction of the arrow
Remove the SymoPS AC
Remove any old PCM paste residues
from the heat sink using a clean cloth
(3)
(1) (1)(2)
WARNING! Observe the safety
rules (see the beginning of the
"Safety" section)
1
2
3
(4)
(5)
(4)
NOTE! Ensure you remove all
PCM paste residues
NOTE! If you are returning the
SymoPS AC, the solar modules
must also be cleaned with a clean
cloth.
- Take the PCM film from the small
parts kit
- Position it on the solar modules
and smooth it out
- Ensure that all the protective film
is removed!
4
5
6
7
