Fronius Symo Service Manual

141
EN

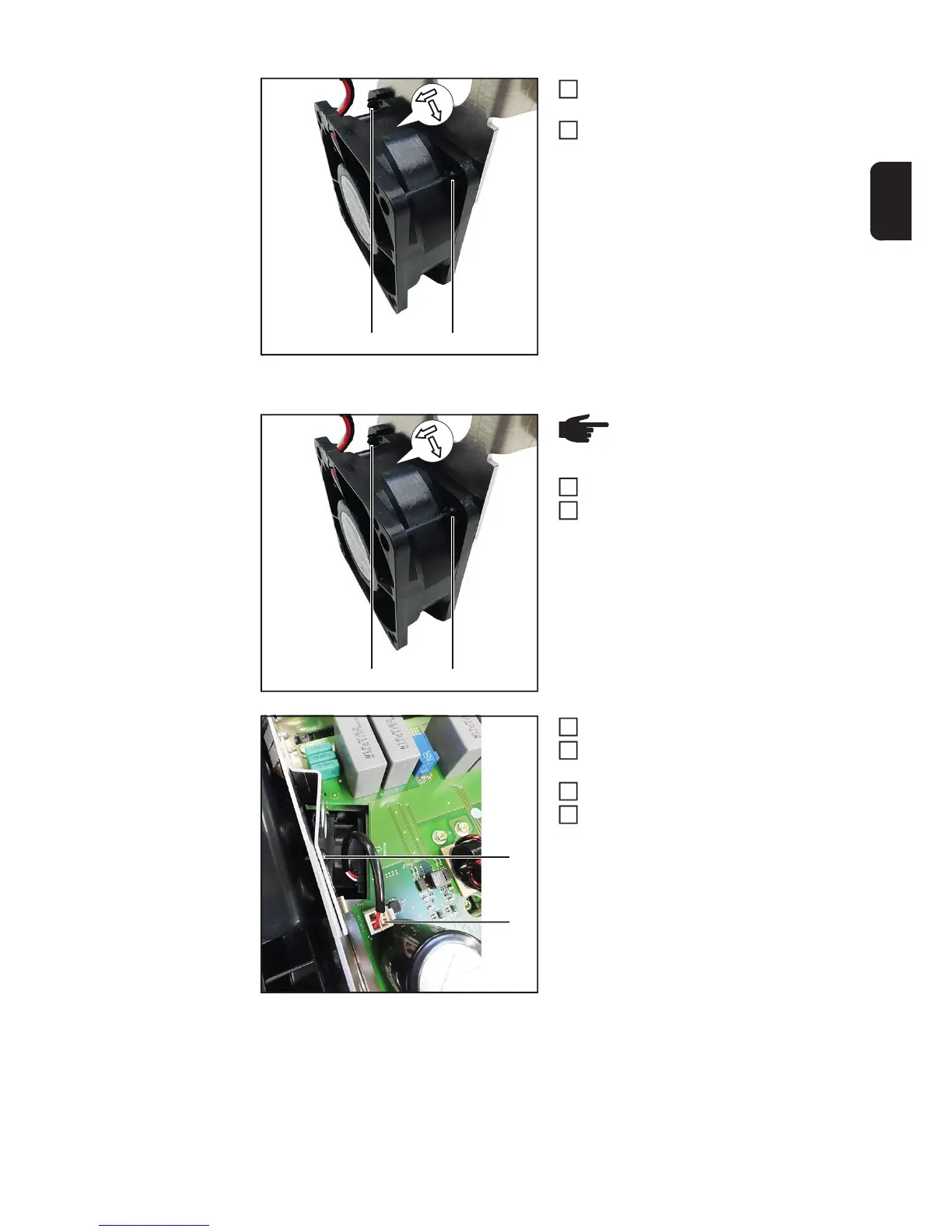

Use a slotted screwdriver to undo the
expanding rivets (3)
Remove the internal fan
Inserting internal fan 2:
Insert the internal fan
Use a slotted screwdriver to press in
the expanding rivets (3)
Insert the internal fan module
Use a slotted screwdriver to press in
the expanding rivets (2)
Connect the fan cable (1) to the EcoPS
Close the inverter and place it in the
wall bracket (see "Opening and closing
the device")
Switch on the inverter and then carry out a
fan test via the display (see operating inst-
ructions)
(3)(3)
4
5
(3)(3)
NOTE! Ensure the flow of air is
away from the fan holder!
1
2
(1)
(2)
3
4
5
6

Fronius Symo Specifications

General

THD	< 3 %
Number of MPP Trackers	2
Protection Class	IP65
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Power Range	3.0 kW - 20.0 kW
AC Output Voltage	230 V
Communication	Ethernet
Warranty	5 years
Model	Symo
