Fuji Electric RYS...S3-VVS Series User Manual

MHT258a (Engl.)6-14

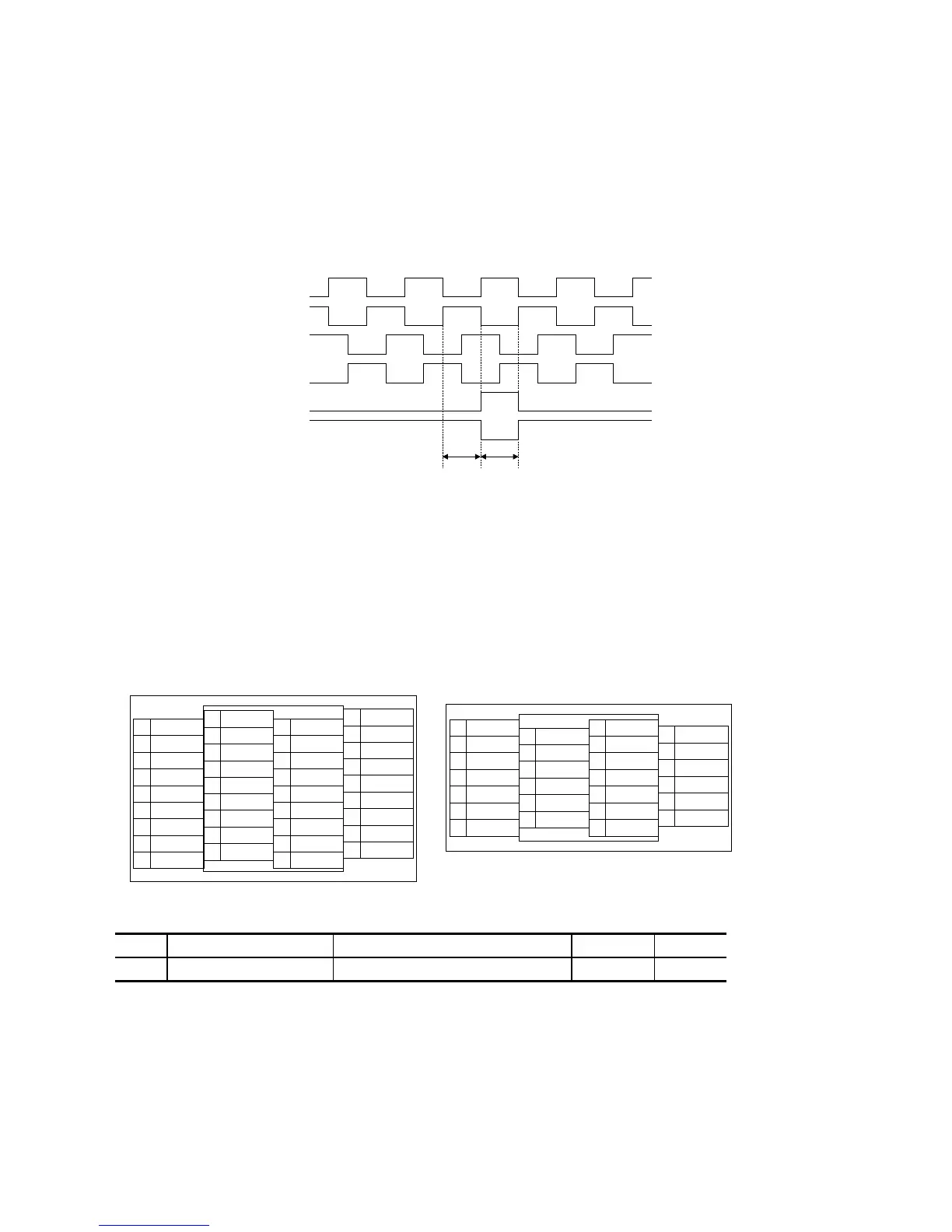

6.2.3 Frequency dividing output
The pulse count in proportion to motor rotational quantity will be output.
The output pulse count can be set for the freq. dividing output terminals [FA], [*FA], [FB], [*FB], [FZ], and [*FZ]. The output pulse count is
common to position control, speed control and torque control.
Pulse width : t11 ≧ 1μs (equivalent to 500kHz)
A-phase and B-phase signals are 50% duty.
The output pulse counts of A-phase and B-phase signal are determined by system para. 79 setting.
Z-phase signal is output one pulse per revolution. The pulse width depends on the A-phase output pulse count.
A-phase signal and Z-phase signal are synchronized. Recommended output frequency is approx. 500kHz. The output frequency is not
restricted by the amplifier.
The position of the motor output shaft has no relation with Z-phase.
RYS□□□S3 - VVS RYS□□□S3 - VSS
System parameter 79
Para. Name Setting range Initial value Change
79 Output pulse count 16 to 16384 [pulse/rev] (in increment of 1) 2048 Power
The freq. dividing output pulse count per one rotation of motor is set. The output form is two 90° phase-different signal.
When the motor rotates forward, a B-phase advanced pulse is output. This does not depend on the rotational direction changeover setting
(system para. 80)
Two 90° phase-different signal is output based on the level at the time of power on.
Max. output frequency depends on the performance of IC (differential driver: AM26LS31 or equivalent) for output terminal. The output
frequency is not restricted by the amplifier.
A-phase [FA]
t
11
A-Phase [*FA]
B-Phase[FB]
B-Phase[*FB]
Z-Phase[FZ]
Z-Phase[*FZ]
t
11
−25
−23
＊ＦＺ21
＊ＦＢ19
＊ＦＡ17
ＢＡＴ−15
−13
ＭＯＮ１11
Ｍ２４9
ＯＵＴ２7
ＣＯＮＴ５5
ＣＯＮＴ３3
ＣＯＮＴ１1
Ｍ５12
ＭＯＮ２10
Ｐ２４8
ＯＵＴ１6
ＣＯＮＴ４4
ＣＯＮＴ２2
24
−22
ＦＺ20
ＦＢ18
ＦＡ16
ＢＡＴ＋14
26 Ｍ５
−
＊ＣＡ36
＊ＣＢ34
＊ＦＡ32
＊ＦＢ30
＊ＦＺ28
ＯＵＴ３26
ＣＯＮＴ８24
ＣＯＮＴ２22
Ｐ２４20
ＮＲＥＦ17
ＴＲＥＦ15
Ｍ５13
Ｐ１０11
Ｍ５9
ＯＵＴ４7
ＯＵＴ１5
ＣＯＮＴ５3
ＣＯＮＴ３1
Ｍ５18
ＭＯＮ１16
ＭＯＮ２14
ＢＡＴ＋12
ＢＡＴ−10
ＯＵＴ５8
ＯＵＴ２6
ＣＯＮＴ６4
ＣＯＮＴ４2
ＣＡ35
ＣＢ33
ＦＡ31
ＦＢ29
ＦＺ27
Ｍ５25
ＣＯＮＴ７23
ＣＯＮＴ１21
Ｍ２４19
