1.3 Functions
The FALDIC-α series has 3 types of control function for particular applications.
(1) RYS-V type : Pulse train/speed control (velocity)
Maximum input frequency 500[kHz]
Rotates according to pulse train from host control equipment, or
speed command from encoder or variable resistor.
The host interface has :
・DI/DO speed (minimum DI/DO),
・SX bus,
・Open network, etc.

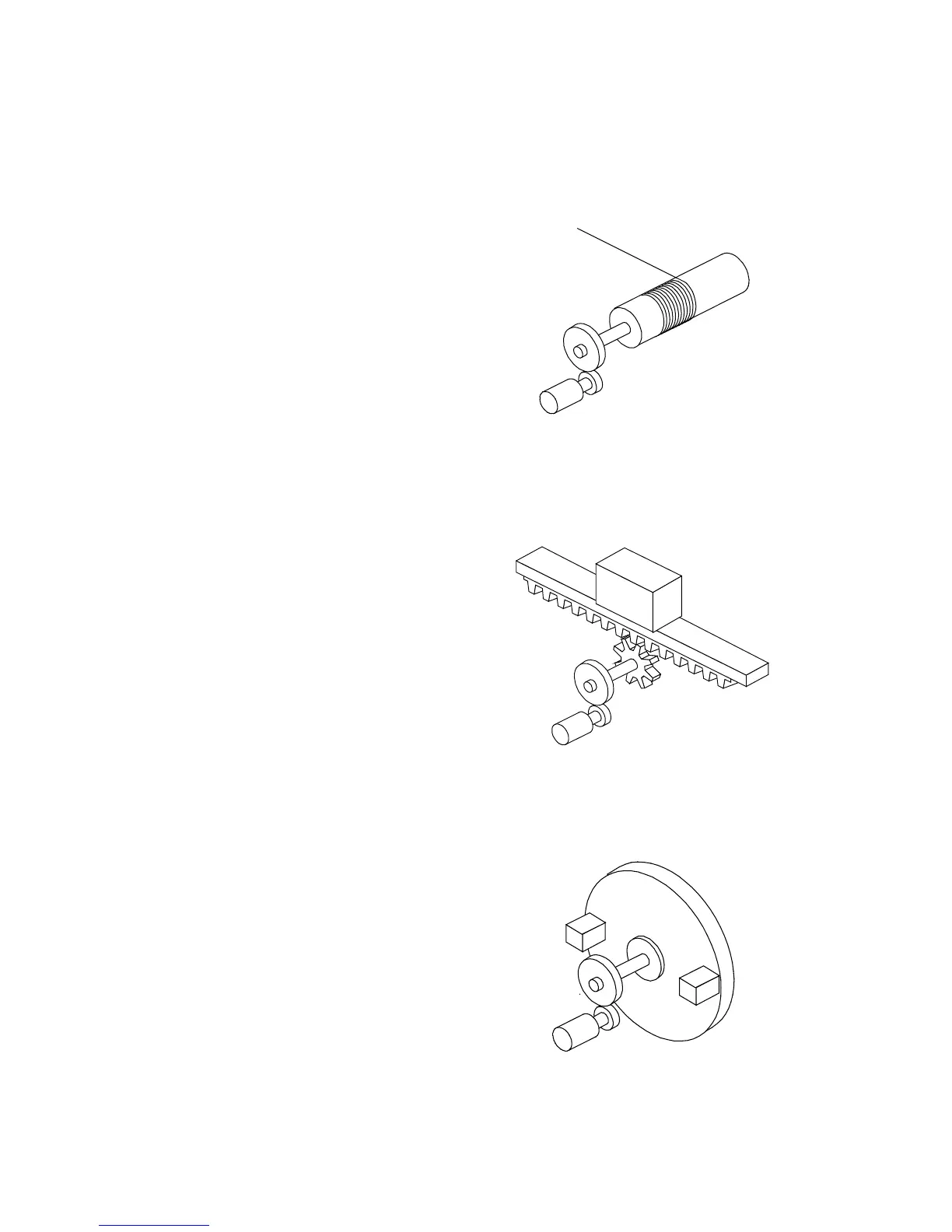

(2) RYS-L type：
：：
：Linear positioning function (linear motion)
Maximum command value ± 79,999,999
The amplifier incorporates a linear positioning function.
A linear positioning system can be used by ball-screw,
rack and pinion or other mechanical equipment systems.
It is usable for 99-point of positioning data, current
(present) position output, immediate positioning, M-code
output and other functions.
The host interface has：
・DI/DO position (expanded DI/DO),
・SX bus,
・Open network, etc.
(3) RYS-R type：
：：
：Rotational indexing function (rotation)
Maximum indexing number 4095
The amplifier incorporates a rotational indexing function.
A rotational indexing system for ATC, tool magazine,
loader/unloader, etc. can be used.
The rotational indexing function is usable for shorted route
control, one-point halt, single-direction infinite rotation, etc.
The host interface has：
・DI/DO position (expanded DI/DO),
・SX bus,
・Open network, etc.
