Fujitsu CELSIUS Mobile H - Page 40

Working with the workstation
34 A26391-K124-Z100-1-7619

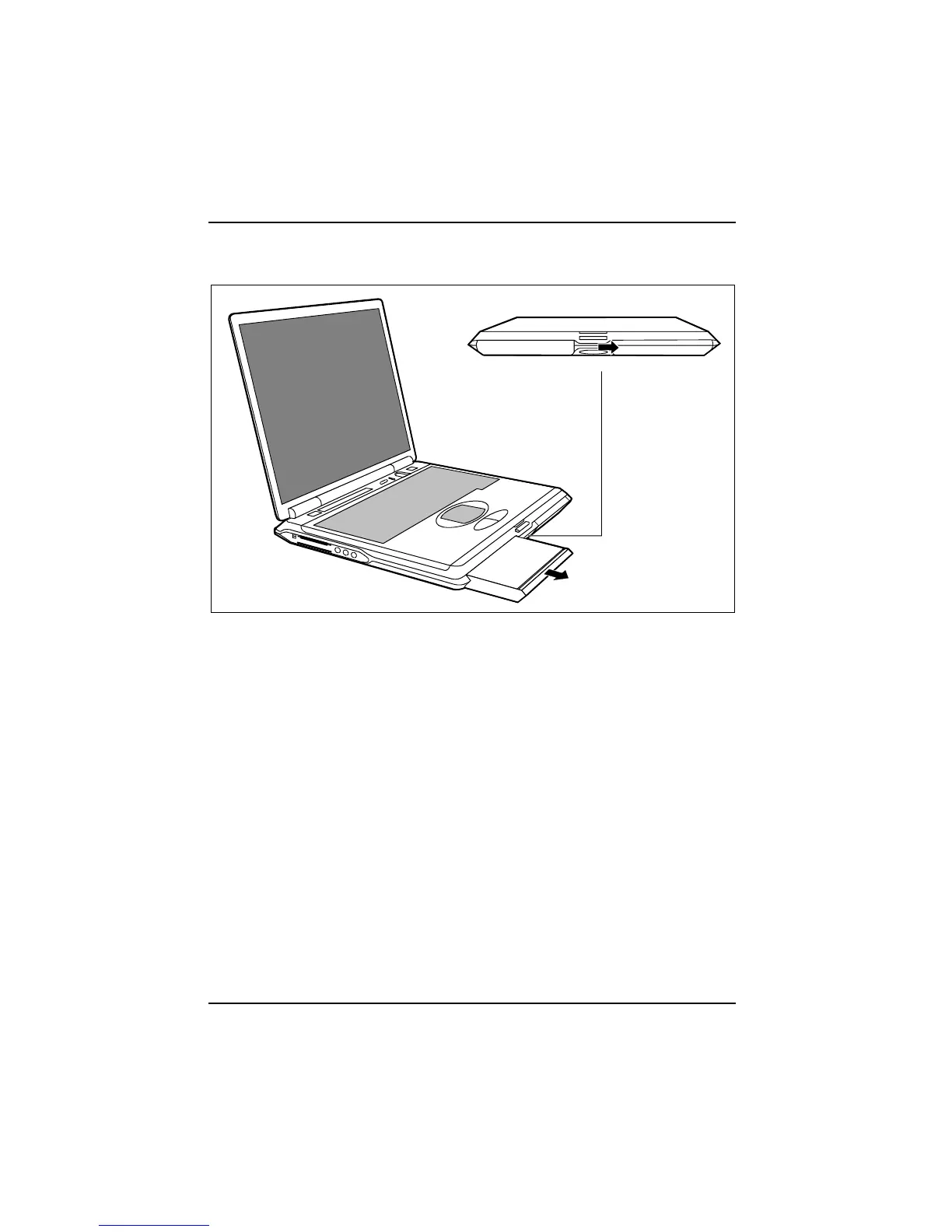

Removing the battery
2
1
Ê Push the slide in the direction of the arrow (1) up to the stop and hold it in place.
Ê Pull the battery out of the casing in the direction of the arrow (2).
