Connecting external devices
A26391-K124-Z100-1-7619 67
1
2
3
1 = Suspend/Resume button
2 = Eject button
3 = Reset button
Suspend/Resume button
The Suspend/Resume button functions like the Suspend/Resume button on the workstation.
Reset button
When you press the Reset button, you carry out a reboot on the docking device and on the
workstation. All data not saved is lost.
Indicators on the II-L port replicator
i
The indicators and the eject button on the front of the Port Replicator II-L are covered by
the device platform of this workstation, and are therefore inoperative.

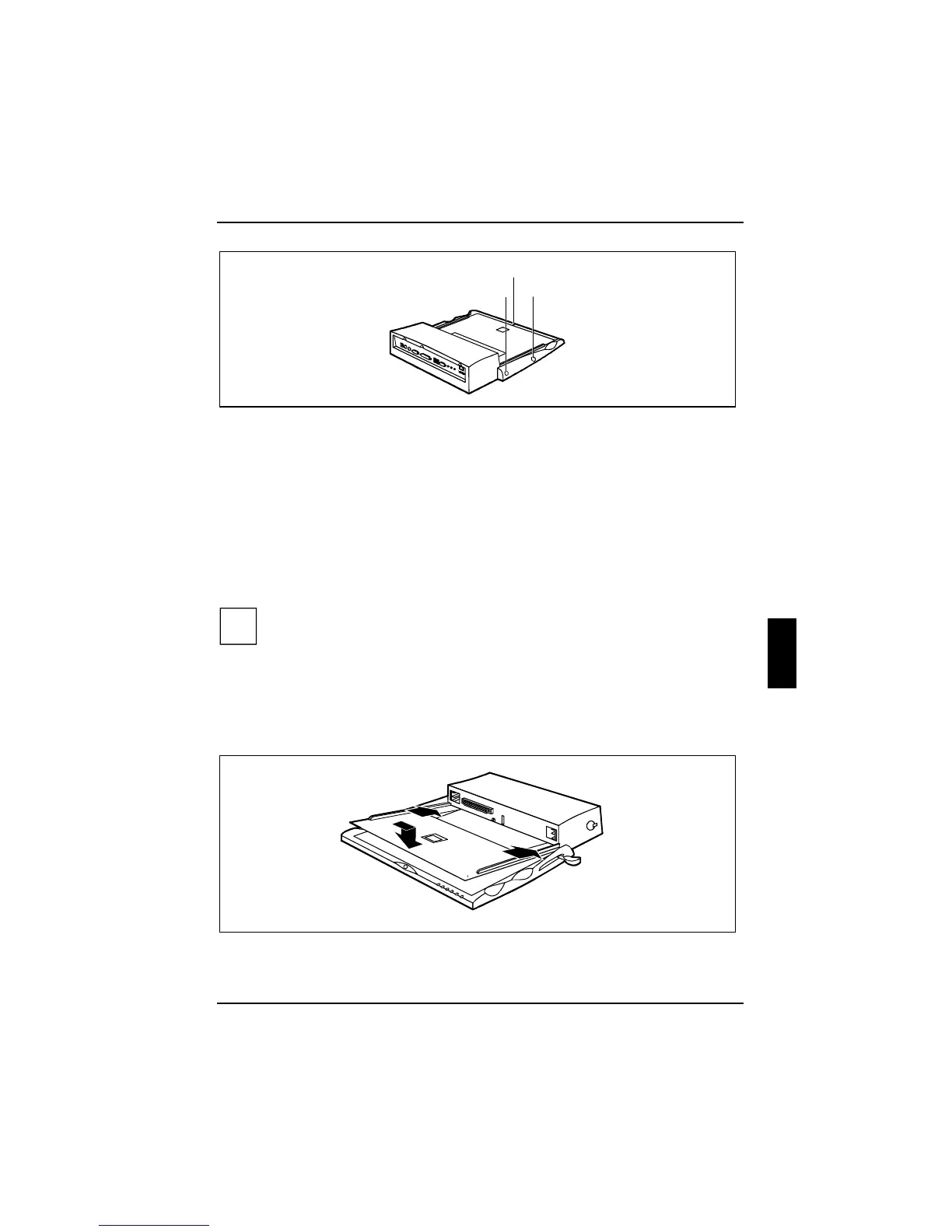

Mounting the tray
A Tray assumes the mechanical adaptation of the workstation to the docking device. You must
mount the Tray on the docking device before you can dock the workstation.
For this workstation you require the device platform W.
1
1
2
Ê Hold the Tray at an angle over the docking device and push the Tray straight into the notches
in the docking device (1).
Ê Press down the front corners of the Tray (2) until they engage.
