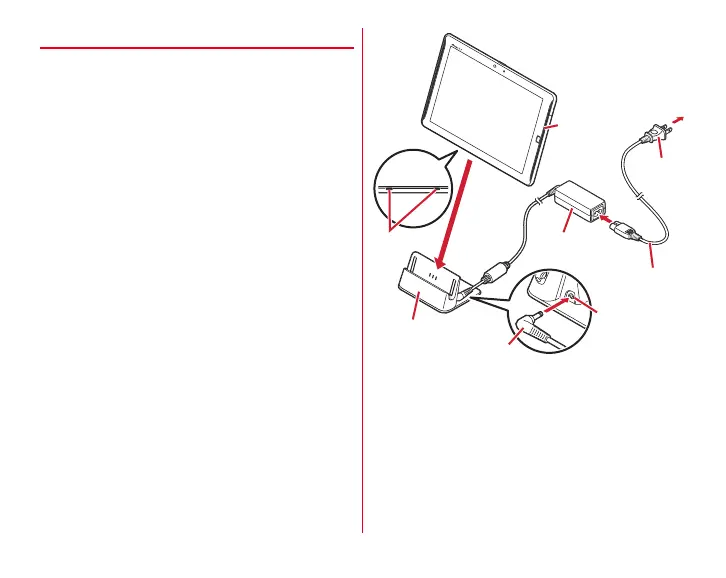

◆ Charging with desktop holder
Charge the battery using included Desktop Holder F43 and AC
Adapter F07 as follows.
a Insert AC power cable into AC adapter main unit
b Insert the connector of AC adapter main unit into the
charging jack of the desktop holder
c Insert the power plug of AC power cable into a power
outlet
d Align the groove of the terminal with the projection part of
the desktop holder and insert the terminal until it clicks,
then confirm that the indicator LED lights on
･ Check the direction to connect correctly. Connecting
forcibly may cause damage.
･ Indicator LED lights in red while charging, and turns off
when charging is complete.
e When charging is complete, remove the terminal from the
desktop holder, then remove the power plug of AC power
cable from the outlet
f Remove the connector of AC adapter main unit from the
desktop holder
To AC 100 V
outlet
Desktop Holder
Groove
Jack on the
Desktop Holder
Power
plug
Connector
AC adapter main
unit
AC power cable
Indicator LED
