42 Operating Manual RX200 S3
Connecting Devices to the Server Hardware Installation
Two additional USB ports (1) are located on the front of the server (figure 9):

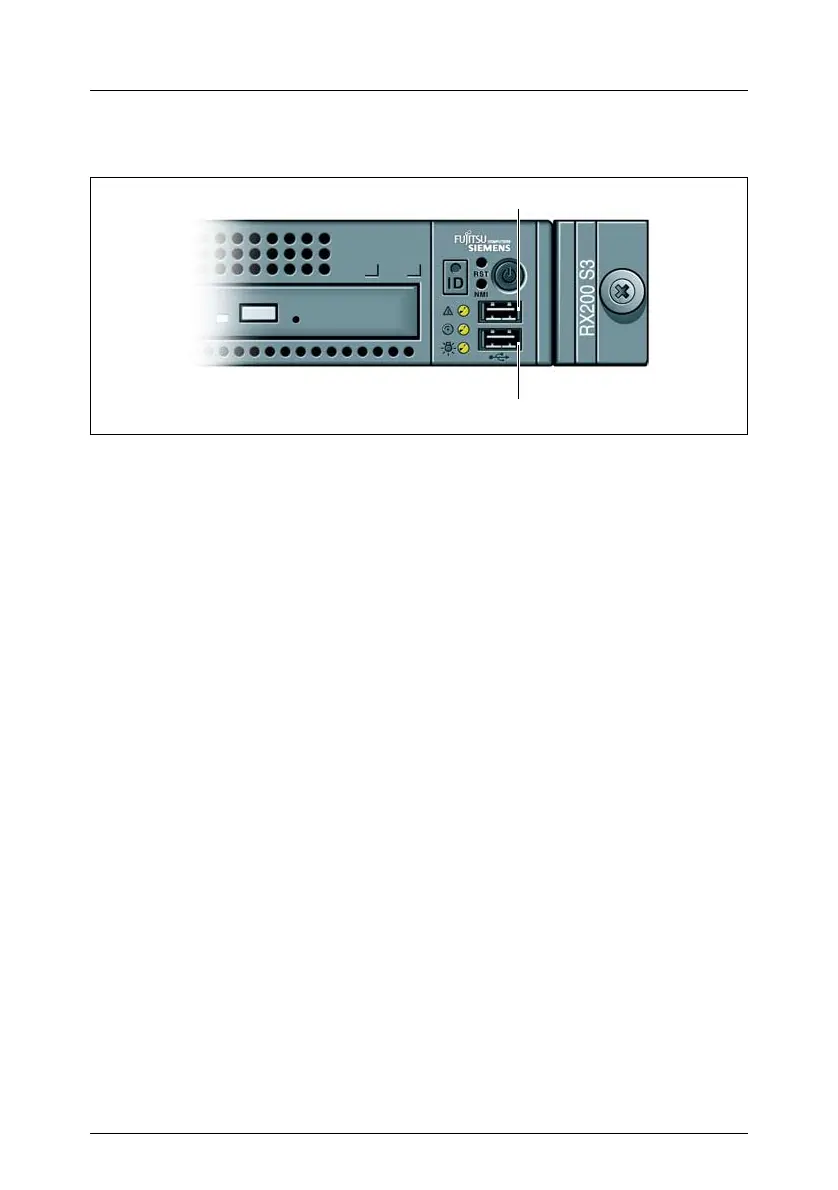

Figure 9: USB Ports on the Front
Connecting the keyboard, mouse and monitor
Ê Connect the monitor, keyboard and mouse to the standard ports of the
server (see table and figure 8 on page 41).
I If a separate graphics card is installed in a slot, the graphic controller on
the system board is automatically deactivated. The corresponding
monitor port (VGA) can not be used. Plug the data cable of the monitor
into the monitor port of the graphics card.
Ê Connect the power cable of the monitor to the mains socket strip of the rack.
I The rated current for the monitor can be found on the technical data label
on the monitor or in the operating manual for the monitor.
